High Speed C Purlin Roll Forming Machine
1.Main features of high speed C purlin roll forming machine
The advantages of high speed C purlin machine are as follows:
1.The speed can reach 40 meters per minute
2.Stable
3.Easy operation, low maintenance cost
4.Beautiful
5.Customorized for any size you want
2.Detailed Images of C shaped steel forming machine
Machine Parts

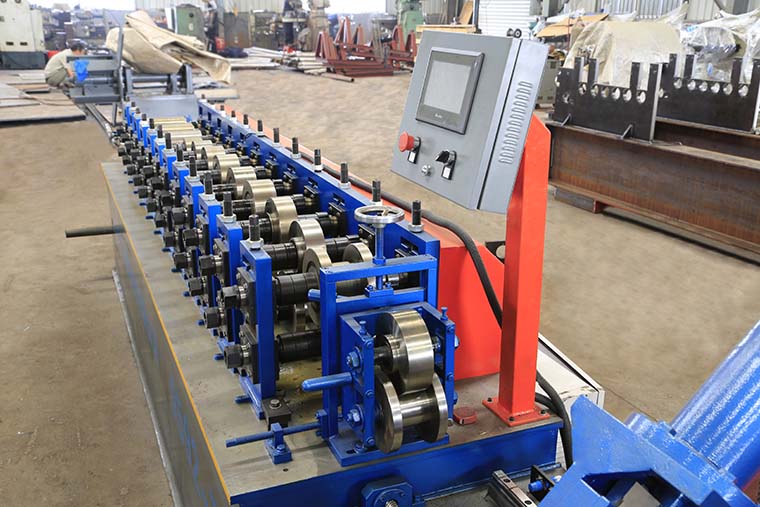

1) High speed C purlin machine operation panel
Brand: BMS Original: China
2) C purlin machine rollers
Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel by welding
3) C purlin machine post cutter
made by high quality mold steel Cr12 with heat treatment
Cutter
frame made from high quality 30mm steel plate by welding
hydraulic motor:7.5KW,
Hydraulic pressure range: 0-16Mpa
4) C purlin machine hydraulic system
5) C purlin machine decoiler
ManualDecoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 3Ton
With 3 tons hydraulic decoiler for option

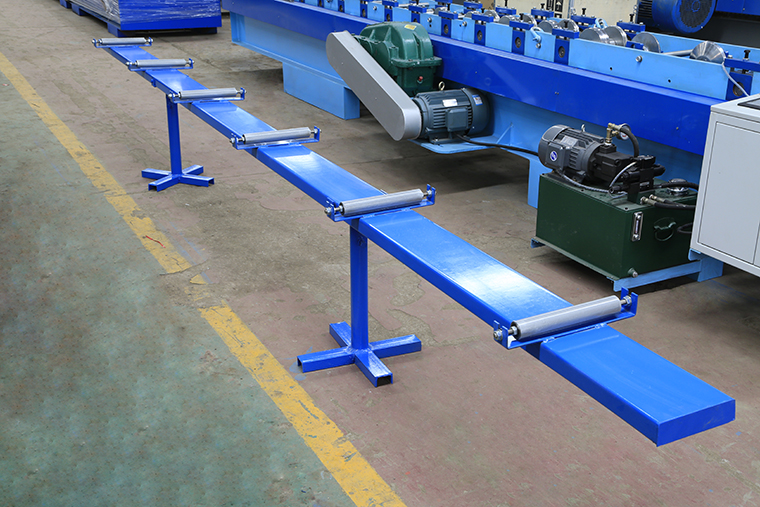

6) C purlin exit rack
Un-powered,one unit
Other detailes of C purlin roll forming machine
Suitable for material with thickness 1.5-3.0mm
Shafts manufactured from 45#,Main shaft diameter=φ90mm,precision machined
Motor driving,Gear chain transmission, 12 rollers to form.
Main motor=30KW , Frequency speed control. Forming speed approx.18m/min
PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
Just adjust required WEB,HEIGHT and LIP by hand wheel with the help of
position clock(with digit display for easy operation) on it,
and then input the required production data on the touch screen.
It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters
like traditional old style machine (which takes over 45 minutes for each production size changing).
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English
