Standing Seam Roof Panel Roll Forming Machine

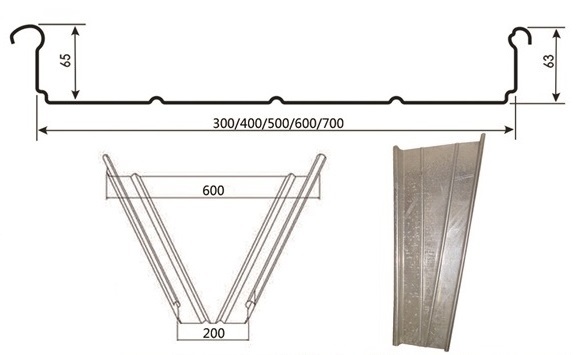

Profile Drawing
Contour Drawing with Taper
1. YX65-499 Main Feature of Standing Seam Roof Roll Forming Machine
Advantage of Standing Seam Roof Roll Forming Machine as following:
1). Low cost, light weight, high strength, short construction period, and recyclable
2). S polishing KALZIP/LYSAGHT/BEMO/KINGSPAN style
3). Simple operation and low maintenance cost
2. Machinery Order
1) Hydraulic Pre-cutting
Brand: BMS Original: China
With feeding device to avoid wasting of materials.
2）Roll Forming Mill
Brand: BMS Original: China
The rollers are made of high-quality 40Cr steel and heat-treated on a lathe.
Choice of black treatment or hard coating.
3) Cutting Device
Made of high-quality Cr12 through mold heat treatment
The tool holder is made of high-quality 20mm steel plate welding
Hydraulic motor: 4KW, hydraulic range: 0-16Mpa
4）YX35-1000 Roof panel machine Protective Cover
5) Product Show

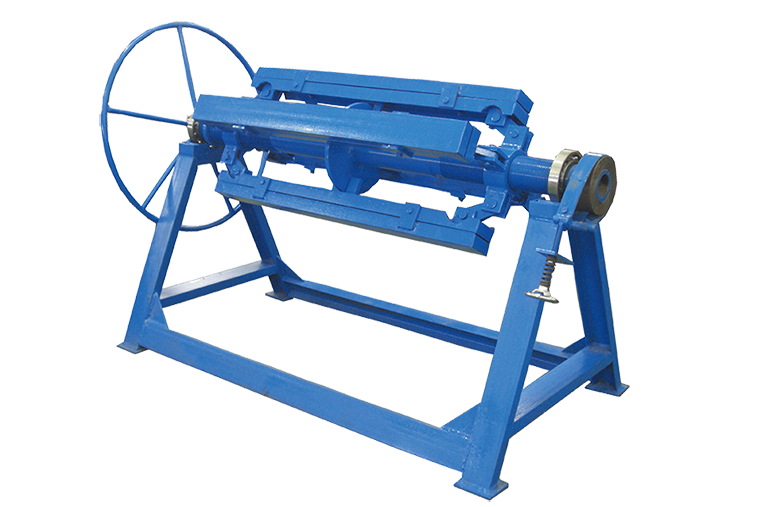

6) Uncoiler
Manual decoiler
No power, manual control of steel coil inner hole shrinkage and stop
Maximum. Feeding width: 1200 mm, coil inner diameter range 508 mm ± 30 mm
Capacity: 3-5 tons
Or equipped with 5 tons hydraulic decoiler
7) Exit Rack *3
More details of Standing Seam Roof Panel Roll Forming Machine
Suitable for materials with a thickness of 0.4-0.8mm
The shaft is made of 45#, pigment processing = φ75mm, precision
Motor drive, gear chain drive, 18-level molding.
Main=5.5KW*2, variable frequency speed regulating motor. Motor speed is about 15-18m/min
PLC control system
Combination: PLC, inverter, touch screen, encoder, etc.
(Touch screen and PLC brand: German Schneider Electric/Japan Panasonic,
Inverter brand: Schneider Electric, encoder brand: Koyo/Omron)
After-sale service of purlin roll forming machine CZ80-300
1. The warranty of purlin roll forming machine CZ80- 300
is 2 years after the client receives the machine.
Within warranty time, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: Always have stock CZ purlin machine for testing and ship in 7 workdays.
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export to 60 countries,including : South Korea,Taiwan, UK, France, Ireland, Greece, Australia, USA, Mexico,
Brazil, Chile, Peru,Bolivia,Uruguay, Jamaica,Trinidad, Israel, Russia,Saudi Arabia, UAE, Iran, Kuwait, Jordan,Yemen,
India, Pakistan,Bangladesh, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, Myanmar, Brunei, South
Africa, Zambia, Mozambique,Congo, Ethiopia, Nigeria, Egypt, etc
