High Speed Stud and Track Roll Forming Machine
(1 machine for multi-profiles,size-changing by spacer)
1.Main features of high speed stud and track roll forming machine
The advantages of high speed stud and track machine are as follows:
1.The speed can reach 30-40 meters per minute
2.Enlarged hydraulic station to ensure high speed working
3.Easy operation, low maintenance cost
4.Beautiful appearance.
5.One machine for multi-profiles,size-changing by spacer
2.Detailed Images of stud and track roll forming machine
Machine Parts
1) High speed stud and track machine arc feeding guide
Brand: BMS Original: China
Arc Feeding Guide(make feeding smooth and no wrinkling)

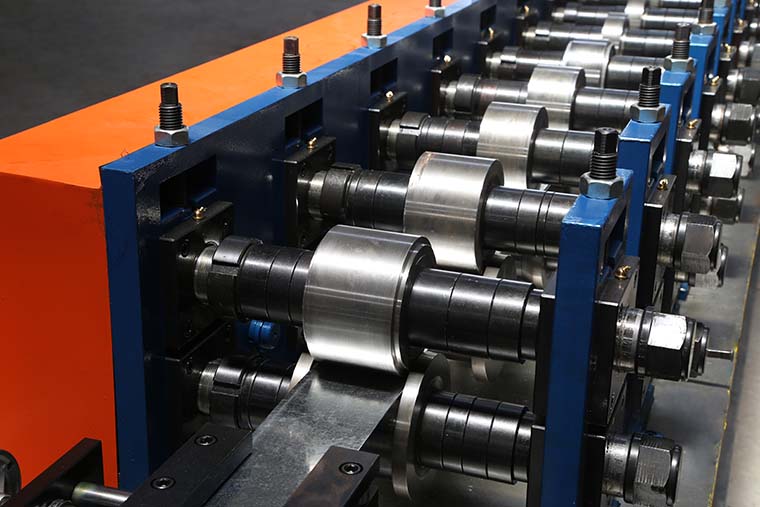

2) High speed stud and track machine rollers
Rollers manufactured from hong life mold steel Cr12=D3 with heat treatment, CNC lathes,
Heat Treatment. (with black treatment or Hard-Chrome Coating for options).
With feeding material guide, body framemade from 400# H type steel by welding

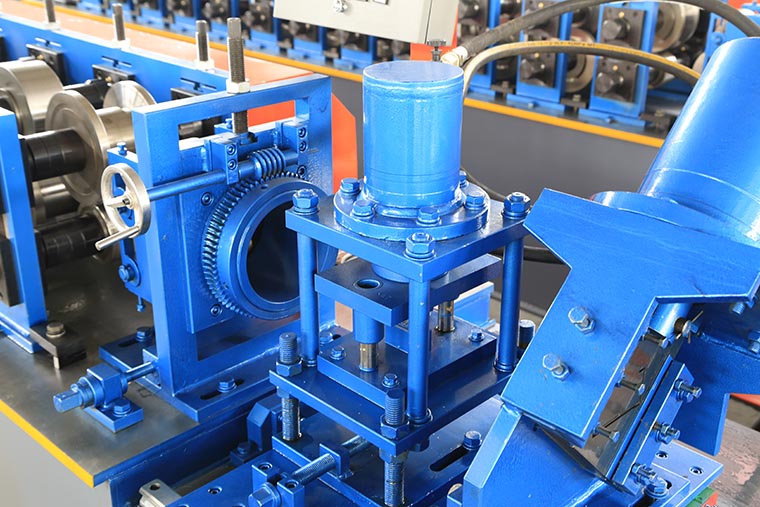

3) High speed stud and track machine straighting and logo punching device
4) High speed stud and track machine operation panel
5) High speed stud and track machine flying cutting
made by high quality long life mold steel Cr12Mov,with heat treatment
Cutter
frame made from high quality 30mm steel plate by welding
hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa
6) High speed stud and track machine hydraulic system
Enlarged hydraulic station to ensure high speed working
7) High speed stud and track machine decoiler
ManualDecoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 508mm±30mm
Capacity: Max. 3Ton
With 3 tons hydraulic decoiler for option
8) High speed stud and track exit rack
Un-powered,4meters long ,one unit
Other detailes of high speed stud and track roll forming machine
Suitable for material with thickness 0.8-1.2 mm
Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined
Motor driving,Gear chain transmission, 12 rollers to form.
Main servo motor=2.0KW , Frequency speed control. Forming speed approx.30-40m/min
PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English
