YX18-76.2-762 Corrugated Panel Roll Forming Machine
1.Main features of YX18-76.2-762 corrugated panel roll forming machine
The advantages of YX18-76.2-762 Corrugated roof panel forming machine are as follows:
1.Products widely used in modern factory,such as workshop,4S auto shop,
is a new popular roof panel.
2.Easy operation, low maintenance cost
2.Detailed Images of YX18-76.2-762 Corrugated panel forming machine
Machine Parts
1) YX18-76.2-762 corrugated roof panel machine logo punching
Brand: BMS Original: China
Avoid wasting material,easy to operate.
2) YX18-76.2-762 corrugated roof panel machine pre-cutter
Avoid wasting material,easy to operate.
3) YX18-76.2-762 corrugated roof panel forming machine rollers
Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.
With black treatment or Hard-Chrome Coating for options.
With feeding material guide,Body framemade from 300# H type steel by welding
4) YX18-76.2-762 corrugated roof panel machine post cutter
Cutter frame made from high quality 20mm steel plate by welding
Post cut, stop to cutting, use the same hydraulic motor drive
Hydraulic motor: 2.2KW, Hydraulic pressure range: 0-12Mpa
Cutting tool material: Cr12, Heat treatment
5) YX18-76.2-762 corrugated roof panel machine control cabinet
6) YX18-76.2-762 corrugated roof panel product show
7) YX18-76.2-762 corrugated roof panel machine decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1000mm, coil ID range 470mm±30mm
Capacity: Max. 5Ton
With 6 tons hydraulic decoiler for option

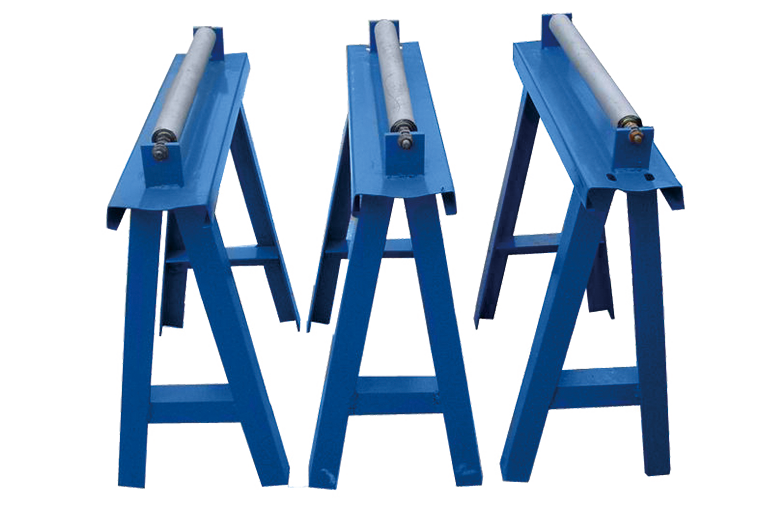

8) YX18-76.2-762 corrugated roof panel machine exit rack
Un-powered,three units
Other detailes of YX18-76.2-762 Corrugated roof panel roll forming machine
Suitable for material with thickness 0.4-0.8mm
Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined
Motor driving,Gear chain transmission, 19 rollers to form
Main motor=5.5KW , Frequency speed control. Forming speed approx.15-20m/min
PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-length tolerance≤±2 mm
Control Voltage 24V
User's manual in English
After-sale service of YX18-76.2-762 Corrugated machine
1. The warranty of purlin roll forming machine YX18-76.2-762 Corrugated roof panel machine
is one year after the client receives the machine.
Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
