RUS Type Double Layer Roofing Panel Roll Forming Machine
With 12 Meter AUTO Stacker Device
Profile
Material
Effective Width: 1219mm
Effective Width Tolerance: -2/+5mm
The Length Of Tolerance: ±0.5mm
Inspection Thickness: 0.5mm
Material Yield Strength: Q235
Work Flow
Uncoiler → Feed Guide Device → Manual Pre Cutting Device → Roll Forming System → Hydraulic Post Cutting Device →12 Meter AUTO Stacker Device → PLC Control System → Hydraulic Station
Machine Components
1) Uncoiler
Auto control steel coil inner bore shrinkage and stop
Max Feeding Width: 1250mm
Max Capacity: 7ton
2) Manual Pre Cutting Device
The guiding position can be adjusted for suitable material feeding.
3) Roll Forming Machine
Body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm; Tie rod:ф22 Galvanized
Rollers manufactured from 45# precision machined, hard Chrome Coated; with thickness 0.5mm, surface with mirror treatment (for longer life and anti-rust);
Shafts manufactured from 45# steel,Quenching and tempering heat treatment, hard chrome plating. Diameter=φ75/90mm, precision machined
Gear & chain drive about 18 +18 -step to form
Main Motor= 11KW, Frequency speed control
Speed reducer motor: R series
All the screw bolts with grade 8.8 (cheap factories use low grade 4.8) to ensure fix the machine structure tightly and long life during the machine long time running.
Forming Speed:20m/min
4)Hydraulic Post Cutting Device
Hydraulic Motor: 4.0KW
Cutting Tool Materail: Cr12Mov (= SKD 11 With At Least One Million Times)

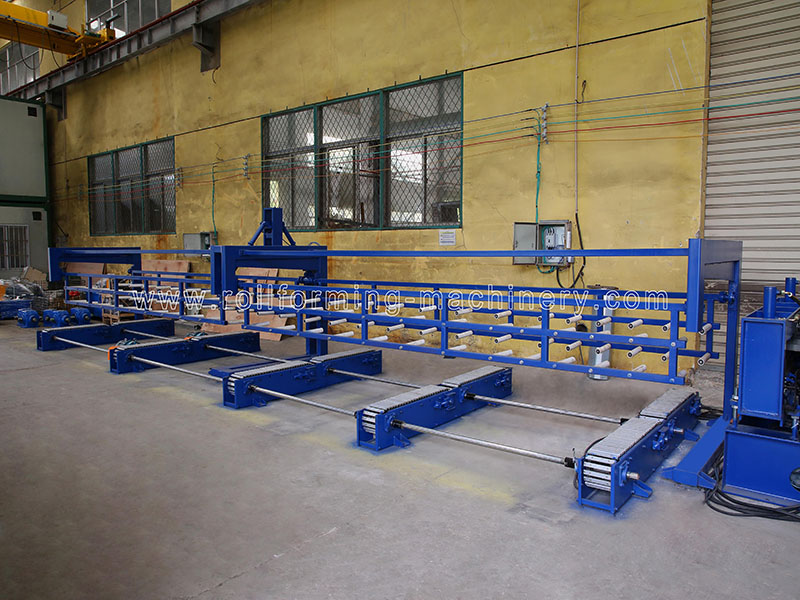

6) 12 Meter AUTO Stacker Device
7) PLC Control System
Control The Quantity And Cutting Length Automatically
Input The Production Data (Production Batch, pcs, Length, etc.) On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc
8) Product Show
After-Sale Service
1. The warranty is 24 months after the client receives the machine.
Within the 24 months, we will courier the replacement parts to the client free of charge
2. We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with
extra cost
Packing method
Main body of machine is naked and covered by plastic film (to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
