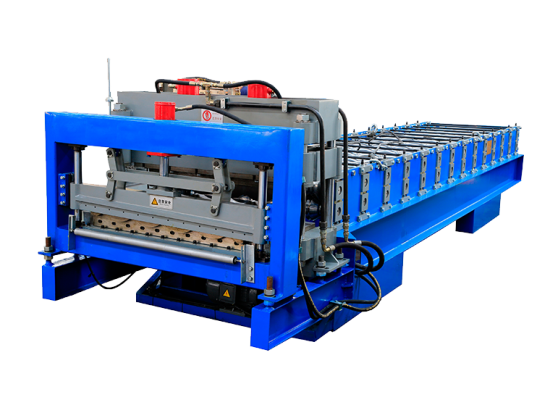

YX28-828 Glazed Tile Making Machine
1.Main features of Glazed Tile Making Machine
The advantages of Glazed Tile Making Machine are as follows:
1.The machine produced tile with low cost, light weight but high strength, short building period, and re-cycle use.
2.Save material , no waste.
3.Easy operation, low maintenance cost
4.With Taiwan Quality,China Price.
2.Detailed Images of YX28-828 Glazed Tile Making Machine
Machine Parts
1) YX28-828 Glazed Tile Making Machine pre-cutter
Brand: BMS Original: China
Avoid wasting material
2) YX28-828 Glazed Tile Making Machine rollers
Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.
with Hard-Chrome Coating for long working life
Body framemade from 350# H type steel by welding
3) YX28-828 Glazed Tile Making Machine post cutter
Made by high quality mold steel Cr12 with heat treatment
Cutter
frame made from high quality 20mm steel plate by welding
hydraulic motor:5.5KW,
Hydraulic pressure range: 0-16Mpa
4) YX28-828 Glazed Tile Making Machine product show
5) YX28-828 Glazed Tile Making Machine decoiler
ManualDecoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1200mm, coil ID range 508mm±30mm
Capacity: 5-9 Ton
With 5-7 tons hydraulic decoiler for option
6) YX28-828 Glazed Tile Making Machine exit rack
Un-powered,one unit
Other detailes of YX28-828 Glazed Tile Making Machine
Suitable for material with thickness 0.4-0.8mm
Shafts manufactured from 45#,Main shaft diameter=φ90/75mm,precision machined
Motor driving,Gear chain transmission, 14 steps to form.
Main motor=5.5KW , Frequency speed control. Forming speed approx.3-5m/min
PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Schneider Electric/Taiwan DELTA/SHILIN,Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English
After-sale service of Glazed Tile Making Machine
1. The warranty of Glazed Tile roll forming machine
is 18moths after the client receives the machine.
Within the 1.5years, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export to more than 50 countries and regions, including Taiwan, UK, France, Ireland, Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, UAE, Iran, Kuwait, Yemen, India, Pakistan, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, Myanmar, Brunei, South Africa, Zimbabwe, Mozambique, Zambia, Congo, Cameroon, Sudan, Ethiopia, Nigeria, Guinea, Algeria, Libya and Egypt, Russia,etc.
