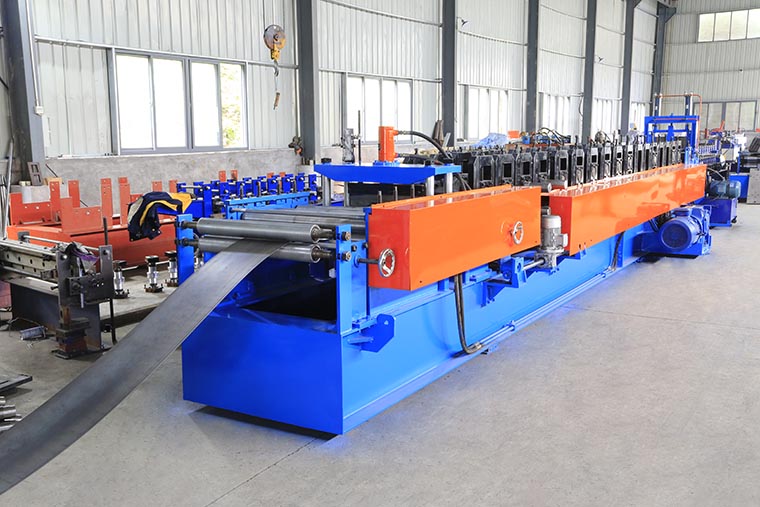

Stud and Track(CU Purlin) Roll Forming Machine
1.Main features of quick-change type stud and track(CU purlin) roll forming machine
The advantages of stud and track(CU purlin) machine AUTOMATIC size-change type are as follows:
1.Produce different stud and track(CU purlin size) without changing rollers or spacers,similar as SAMCO studmaker,but can also produce tracks)
2.With our PATENTED universal cutter,no need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of stud and track(CU purlin) web side and flange side
2.Detailed Images of stud and track(CU purlin) roll forming machine
Machine Parts
1) CU purlin machine leveling device
Brand: BMS Original: China
2) CU purlin machine pre-cutter
3) CU purlin machine side wall
4) CU purlin machine rollers
Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel by welding
5) CU purlin machine post cutter
No need to change cutter for different size,
made by high quality mold steel Cr12 with heat treatment
Cutter
frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting,
stop to punch, stop to cut
hydraulic motor:7.5KW,
Hydraulic pressure range: 0-16Mpa

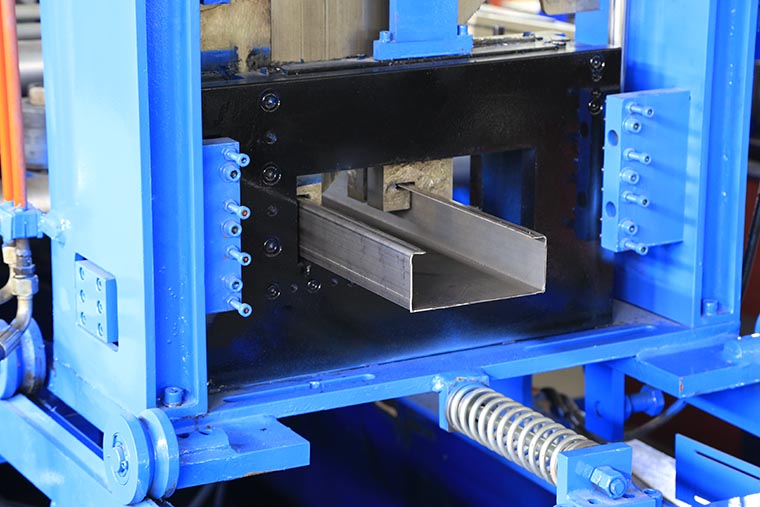

6) CU purlin machine product show
7) Stud and track(CU purlin)roll forming machine decoiler
ManualDecoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 3Ton
With 3 tons hydraulic decoiler for option
8) CU purlin exit rack
Un-powered,one unit
Other detailes of stud and track(CU purlin) roll forming machine
Suitable for material with thickness 1.0-3.0mm
Shafts manufactured from 45#,Main shaft diameter=φ90mm,precision machined
Motor driving,Gear chain transmission, 20 rollers to form.
Main motor=18.5KW , Frequency speed control. Forming speed approx.18m/min
PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Taiwan DELTA/SHILIN,Encoder brand:Japan Koyo/OMRON)
Just adjust required WEB,HEIGHT and LIP by hand wheel with the help of
position clock(with digit display for easy operation) on it,
and then input the required production data on the touch screen.
It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters
like traditional old style machine (which takes over 45 minutes for each production size changing).
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English
