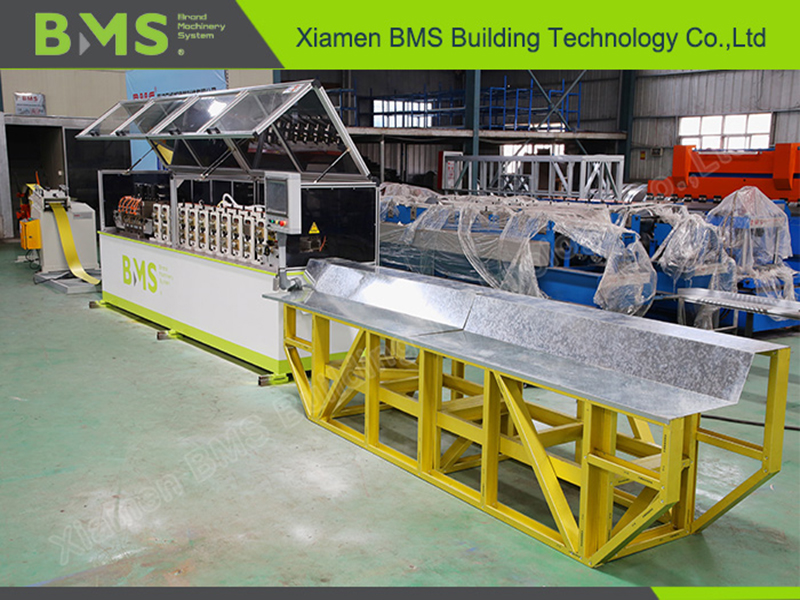

C/U Truss Roll Forming Machine(700m/h,Howick/FrameCAD/SCOTTSDALE Light Steel Framing System style )
Video:Light Gauge Steel Framing Machine
Profile
Material

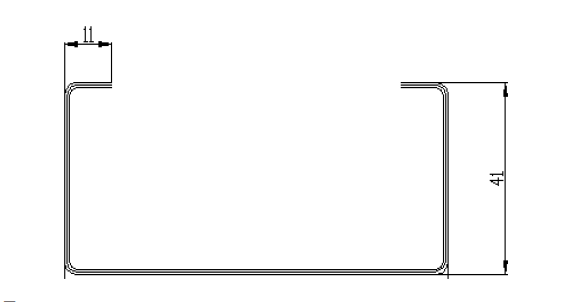

Effective Width:89/141 Refer To Drawing
Material Thickness:0.75-2.0mm
Applicable Material:GI(Galvanized steel),GL(Galvanized Aluminum Zinc steel)
Yield Strength G300-G550 Mpa
Work Follow
Decoiler and Leveling Device→Feeding Device And Pre-Punching Device→Main Forming System →Guide Wheel And Automatic Hydraulic Cutting Device →Exit Rack
Machine Components

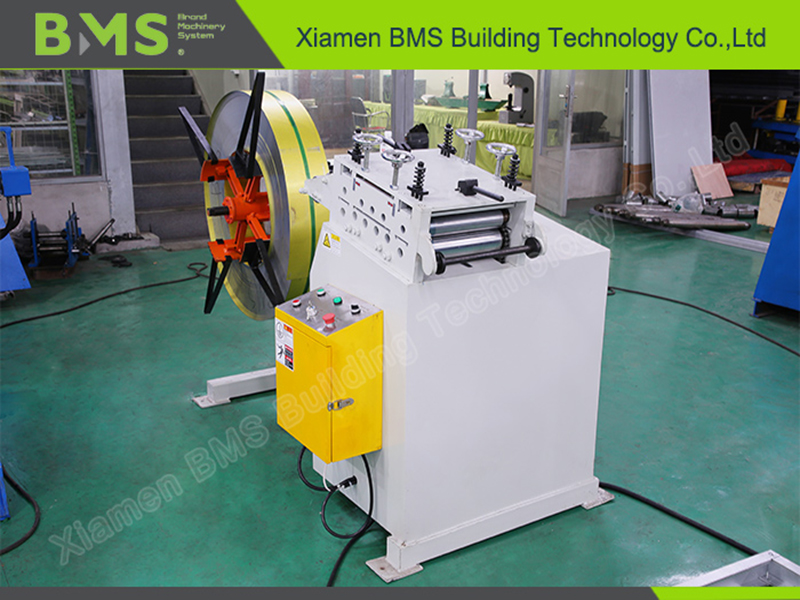

1) 2Tons Hydraulic Decoiler And Leveing Device
Hydraulic control steel coil inner bore shrinkage and stop
Max feeding width:500mm, coil ID range Ф460mm-Ф520mm,OD Ф1400mm,Capacity:Max 2Tons
decoiler by inverter control the speed,Power:2.2kw
Left and right guiding device. The material enters into the main forming machine through left and right guiding device to reach the material feeding and leveling effect

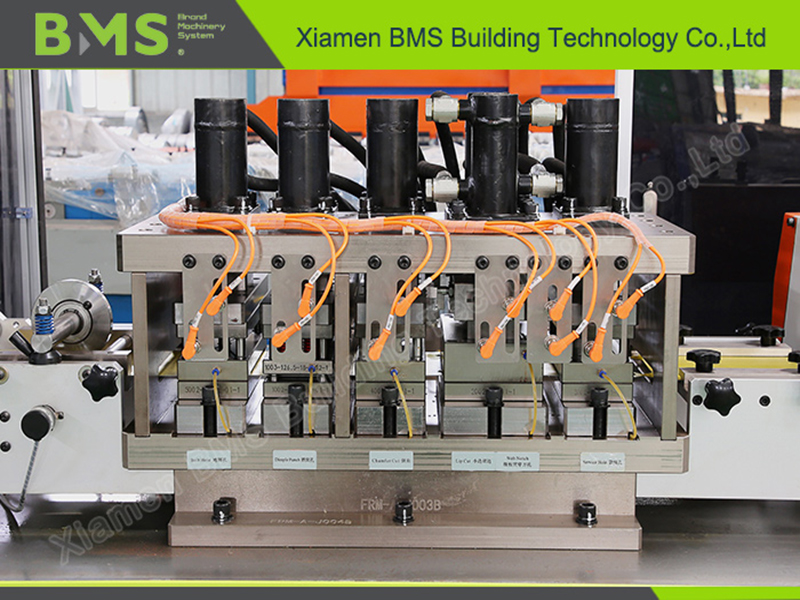

Five-cylinder hydraulic driving
Stamping mould manufactured from S45C tooling steel, die core manufactured from D2 (SKD11) steel, mould parts use
Lip Notch hole、Dimple hole、Web notch hole、Web oval hole、Web round hole are available in the machine
Punching model:
Lip notch hole: one set
Dimple hole: three sets, hole diameter:Φ3.5mm/Φ10mm/Φ16.5mm
Web notch hole: many sets, depends on the commonly used specs
Web oval hole: one set
Web round hole: one set
Punching models: need to confirm with the buyer about the commomly used bottom width data.(Standard equiped with one set)

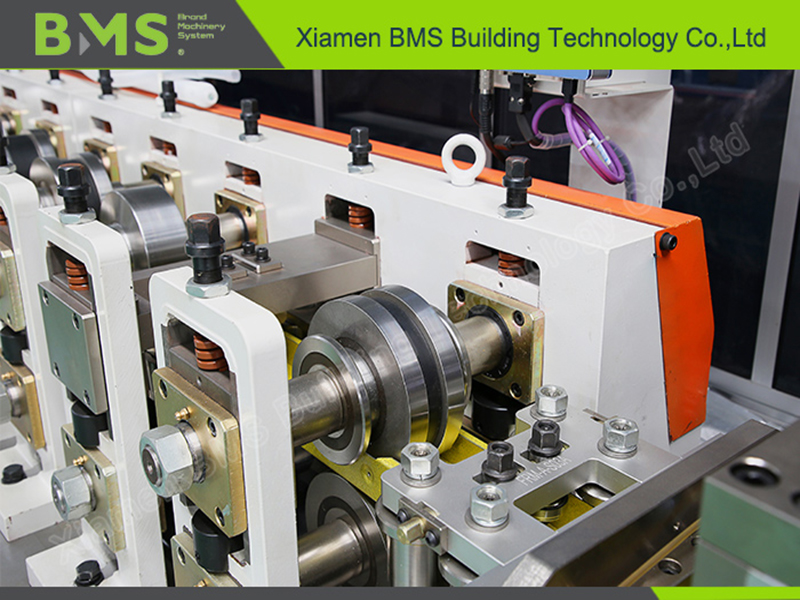

3)Roll Forming System
The machine dimension(L*W*H):About 4900mm*1000mm*1500mm
Body frame made from steel board by welding; wholely annealing and stress-relieve treatment to ensure the long time use
Without distortion;processed by CNC machining centre to ensure accuracy
Forming mold:Cr12MoV molding steel, through vacuum quenching heat treatment to HRC60-62 °then grinding the inner
Hole and the end face.The precision machining roller surface with CNC lathe
Main shaft: manufactured from 40Cr tooling steel, quenching and tempering external grinding and machined
Driving type: servo motor and gearbox linkage, rollers adopt the precision hard gears oiled running, to ensure super long-time
Using without wearing.Bearing:Japan NSK brand

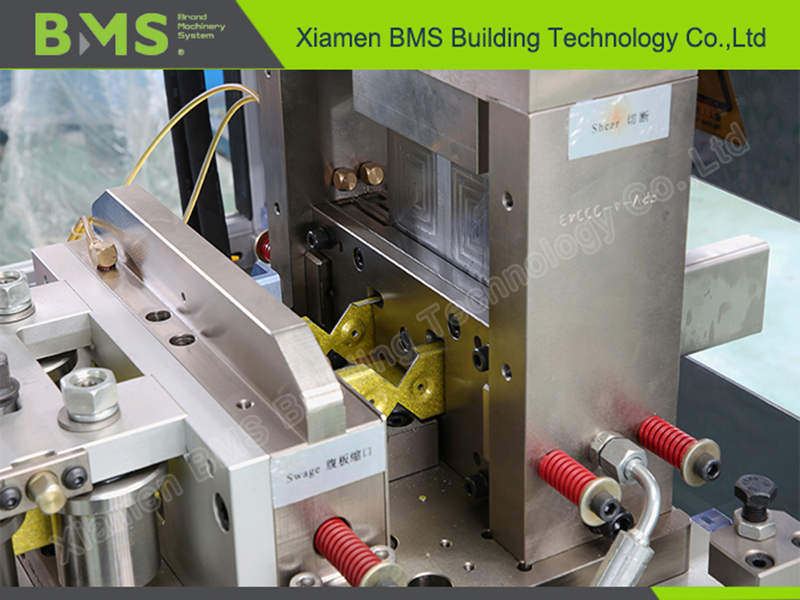

4)The Hydraulic Post Cutting
Accumulator type structure, for energy saving and environmental protection
Hydraulic parts: with Germany Bosch Rexroth product,Motor: and with Swedish-Swiss brand ABB motor,which ensure stable working and long life.
Hydraulic motor:5.5KW

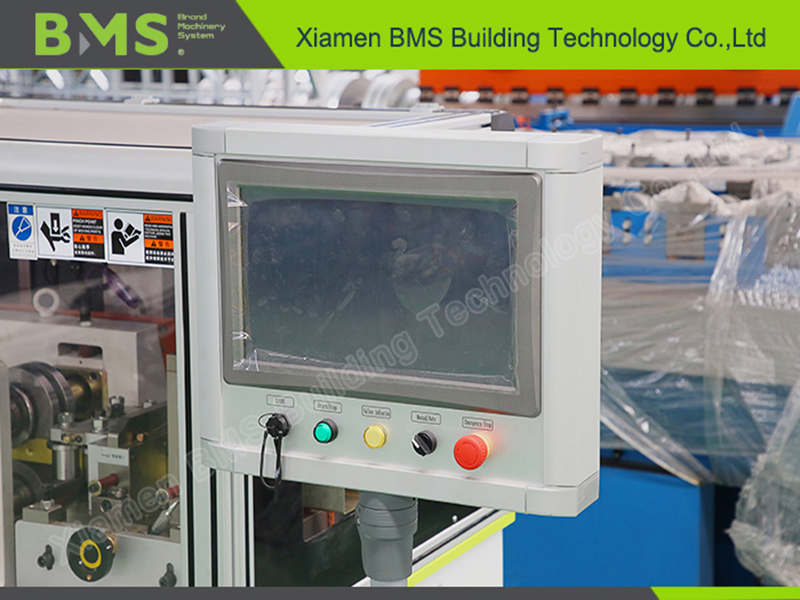

5)PLC Control System
Original imported motion controller and PLC,equipped with iPhone manufacturer FOXCONN brand Industrial grade computer
International first class brand of low voltage components
6)Exit Rack And Free-Standing Frame
With main free standing housing box-type structure, box body processed by CNC machining center
7)Digit-controlled Inkjet printer
With Industrial class high quality solvent type electronic inkjet printer(maintenance-free ), which printing clearly, firmly and easy to installation
With universal solvent ink, easy to purchase, and save the cost

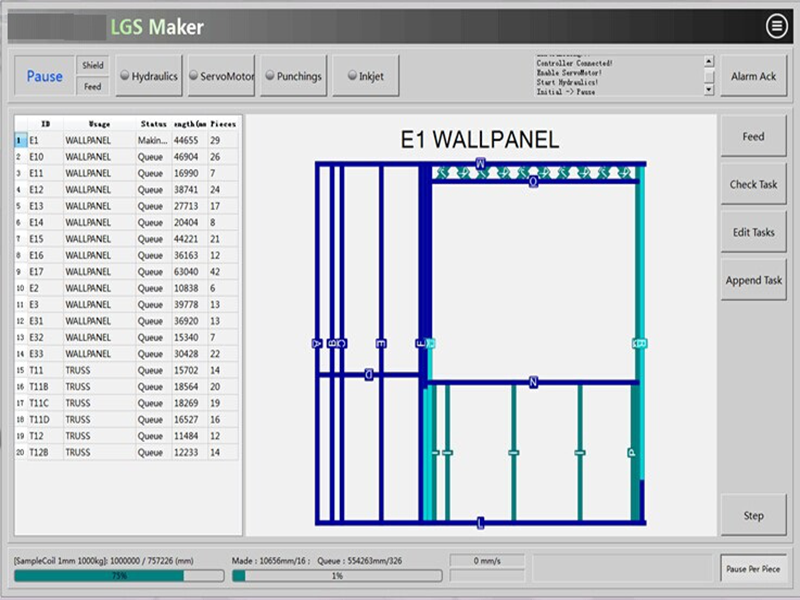

Automatically print the tags which generated automatically by the design software, without human intervention
You can add any information on the LGS maker production control system, such as: the company name, logo, website and so on
8)Production design
(International famous leading Light Steel Structure design software)
1.Automatically generate the frames structure of walls, floors and roof, reducing design time
2.Really automatic three-dimensional modeling, to ensure the accuracy of 100%
3. The Software built-in engineering analysis functions, can automatically calculate the structure bearing capacity
4.Automatic generate the frame 3D drawing and 3D decoration drawing
5.Automatic split the drawing, according to the design, split the architectural framework into the single unit drawing
6.Automatically generate the accurate steel part material placing form and BOM(bill of material)
7.Automatically calculate the BOM of the entire building, including the required steel, board, insulation material, number of
doors and windows, screws, and other related materials, can evaluate for the project cost accurately, and easy for users
to bid for projects
8.Automatically generate the processing data (including component tags) for docking with the equipment
9.With English version software, easy to understand. The designers can learn the usage just through a simple training
