Metal Roofing Panel Roll Forming Machine
Profile Drawing
1.Main features of metal roofing panel machine roll forming machine
The advantages of roof panel machine are as follows:
1.Low cost, light weight but high strength, short building period, and re-cycle use
2.Save material ,no waste.
3.Easy operation, low maintenance cost
4.Able to deal with stainless material
2.Detailed Images of metal roofing panel forming machine
Machine Parts
1) Metal roofing panel machine pre-cutter
Brand: BMS Original: China
With feeding material guide,avoid wasting material
2) 2) YX22-1070 roof panel machine rollers
Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
Body frame made from 350# H type steel by welding
3) 3) YX221070 roof panel machine post cutter
Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
hydraulic motor:4KW, Hydraulic pressure range: 0-16Mpa

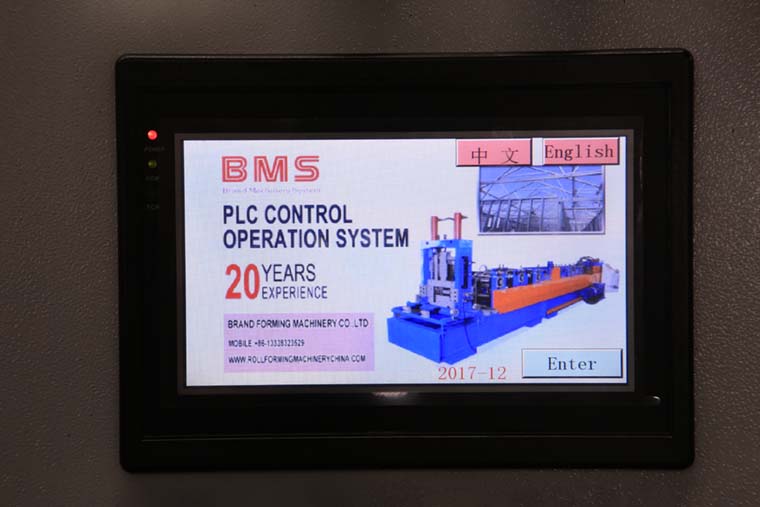

4) 4) YX22-1070 roof panel machine control cabinet
4) 5) YX22-1070 roof panel machine product show
Overlap effect
5) 7) YX22-1070 roof panel machine decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1200mm, coil ID range 508mm±30mm
Capacity: 5-9 Ton
With 7 tons hydraulic decoiler for option
6) 8) YX22-1070 roof panel machine exit rack
Un-powered,three units
Other details of YX22-1070 roof panel roll forming machine
Suitable for material with thickness 0.3-0.8mm
Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined
Motor driving,Gear chain transmission, 18 steps to form.
Main motor=5.5KW , Frequency speed control. Forming speed approx.12-15m/min
PLC Control System (Touch screen brand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manual in English
