Roofing Panel Roll Forming Machine (Installation Of Solar Panel)
Material Detail
Applicable Material:GI Meterial Thickness: 0.6mm
Inspection Thickness: 0.6mm Material Strength:235-345Mpa
The Length of Tolerance: ±1mm (6M)
Work Flow
Uncoiler→Manual Pre Cutting Device→Feeding Guide Device → Roll Forming Mill→ Hydraulic Post Punching & Cutting Device → Exit Rack*3 → PLC Control System
→ Hydraulic Station

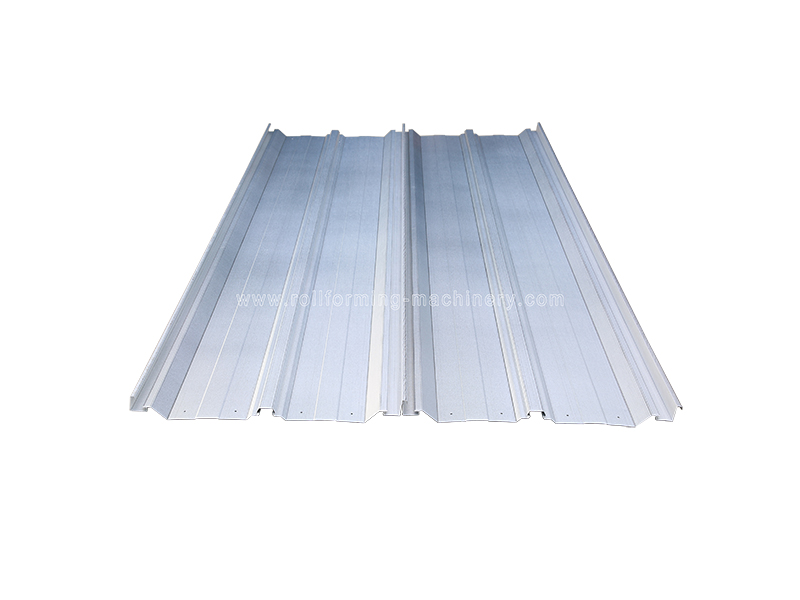

Profile
Machine Components
1、Feeding Guide Device & Manual Pre Cutting Device
2、Roll Forming Mill
Body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm;
Shafts manufactured from 45# steel, Shaft Diameter: φ75
Spacer made from 45# steel, CNC lathes,Hard chrome platingtreatment
Gear & Chain drive about 24-step to form.
Forming Speed: 20-25m/min; Produced Speed: 20-25m/min (Including punching and cutting time)
Main Motor:7.5KW; Chain:ZIQIANG
All the screw bolts with grade 8.8 (Cheap factories use low grade 4.8) to ensure fix the machine structure tightly and long life during the machine long time running.
3、Hydraulic Post Punching & Cutting Device
Made by high quality mold steel Cr12MoV with heat treatment
Cutter frame made from high quality steel plate by welding
Hydraulic motor: 4KW, Hydraulic pressure range: 0-16Mpa
4、PLC Control System
6、Product Show
After Sale Servicve
1、The warranty is 24 months after the client receives the machine. Within the 24 months, we will courier the
replacement parts to the client free of charge.
2、We offer technical support for the entire life of our machines.
3、We can sent our technicians to install and train the workers in the clients' factories with extra cost.
Packing Method
Main body of machine is naked and covered by plastic film ( to protect of dust and corrosion), loaded into container
and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
