Roofing Panel Roll Forming Machine For YX25-190-760(Taiwan Type)
Profile
Material
Effective width: 760mm
Feeding width: about 914mm
Material Thickness: 0.35-0.8mm
Applicable material:Galvanized Steel(GI)
Cold roll steel(CRC)with yield strength 235-550Mpa
Work follow
Decoiler→Manual Pre-Cutter→Guide Feeding →Roll Forming System→Hydraulic Post Cutter →Exit Rack
Machine Components
1) Manual Decoiler: one set
Un-powered, Manually control steel coil inner bore shrinkage and stop
Max Feeding width: 1000mm,coil ID range 508mm±30mm
Capacity: Max. 5 Ton
2) Main Machine(Can Choose The Pre-Cutter)

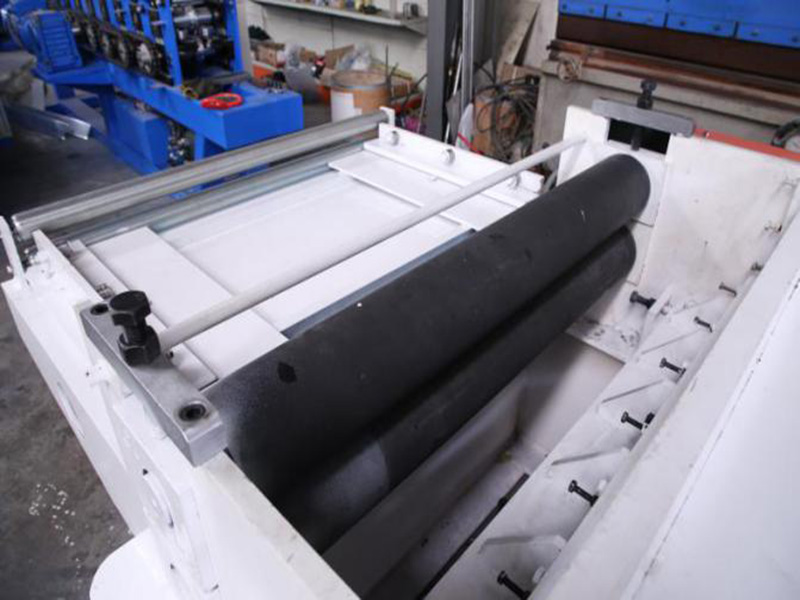

With feeding material guide, body frame made from H500 type steel by welding
Side wall thickness: Q235 t20mm
Rollers manufactured from 45# steel,CNC lathes,Heat Treatment,hard Chrome Coated
with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
Shafts Diameter=ф80mm Round steel,precision machined
Main Motor=11KW,Frequency speed control
Gear/Sprocket driving,about 24-step to fo

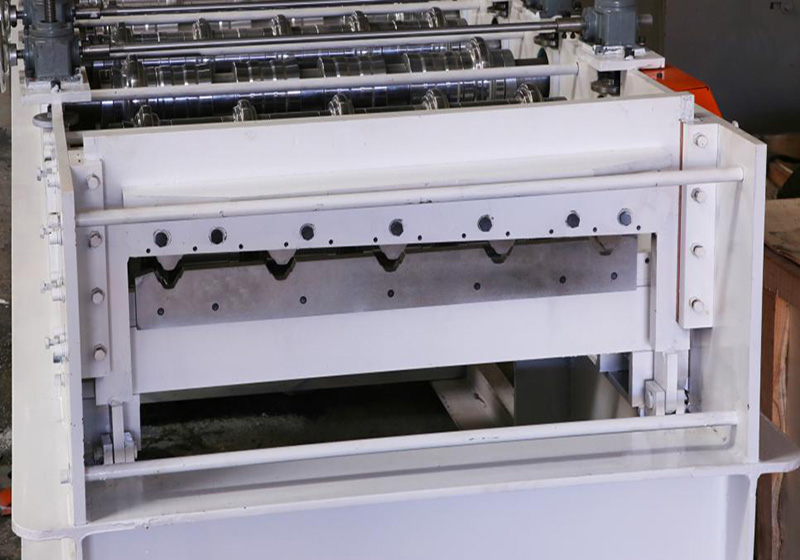

4) Post Hydraulic Cutting Device
Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor: 4KW
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine hydraulic station
5) PLC Control System
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen
It Can Finish The Production Automatically
Combined With: PLC, Inverter, Touch Screen, Encoder, etc
6)Exit Rack
Un-powered, Three units,with rollers on it for easy movement
Packing Style
Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
After-Sale Service
1. The warranty is 24 months after the client receives the machine.
Within the 24 months, we will courier the replacement parts to the client free of charge
2. We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with
extra cost
Terms Of Trade
1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc
