Roller Shutter Guide Rail Roll Forming Machine
Click here to check the video:http://www.rollformingmachinerychina.com/roller-shutter-guide-rail-roll-forming-machine_n89
1.Main features of Roller Shutter Door Roll Forming Machine
The advantages of Shutter Door Guide Roll Forming Machine are as follows:
1.Accuracy profile
2.Save space,more convenient.
3.Easy operation, low maintenance cost
4.Stable and durable
2.Detailed Images of Shutter Door Guide Roll Forming Machine
Machine Parts

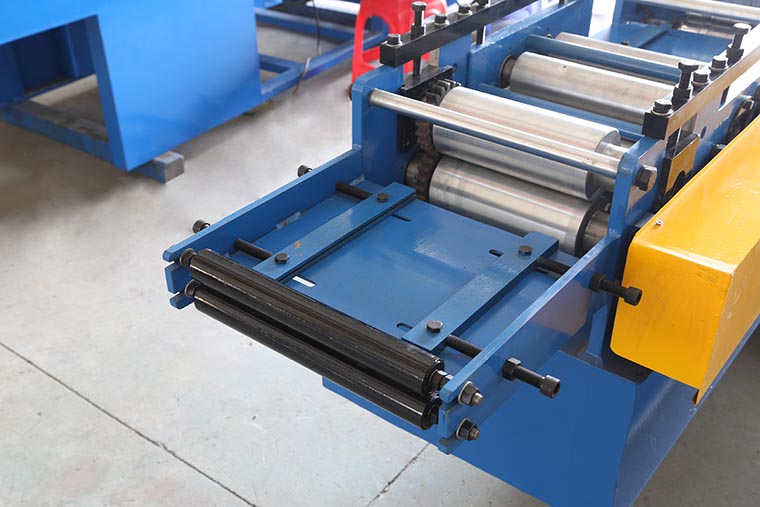

1)Shutter Door Guide Roll Forming Machine feeding guide
Brand: BMS Original: China

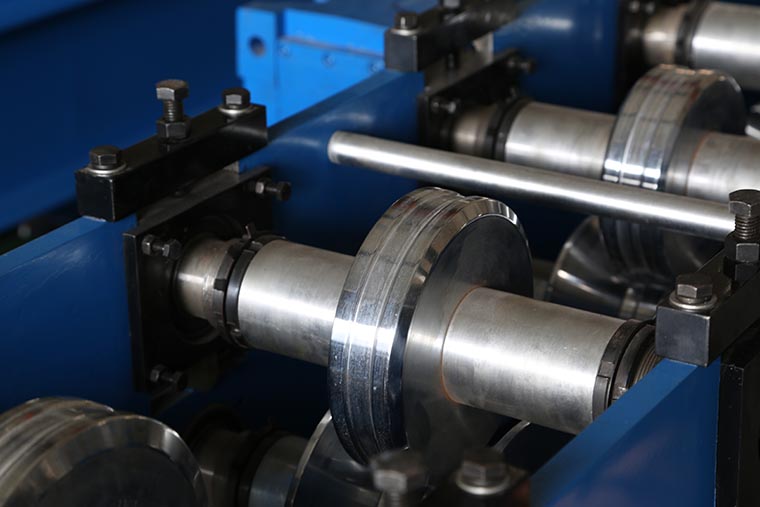

2) Shutter Door Guide Roll Forming Machine rollers
Rollers manufactured from high quality 45# steel , CNC lathes, Heat Treatment.
With black treatment or Hard-Chrome Coating for options.
Body framemade from 300# H type steel by welding
3) Shutter Door Guide Roll Forming Machine post cutter
Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
4) Shutter Door Guide Roll Forming Machine Sample Display
5) Roller Shutter Door Roll Forming Machine decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 300 mm, coil ID range 470mm±30mm
Capacity: Max. 3 Ton
6) Shutter Door Guide Roll Forming Machine run out table
Un-powered,one
unit
Other detailes of roller shutter guide rail machine
Shafts manufactured from 45#,Main shaft diameter=φ45/57mm,precision machined
Motor driving,Gear chain transmission,14/19 steps to form
Main motor: 4KW/5.5KW ,Hydraulic motor :2.2KW/3.75 KW
Frequency speed control. Forming speed approx.12-15m/min
PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Taiwan DELTA/SHILIN,Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English
For the more detail check the video on youtube
After-sale service of Shutter Door Guide Roll Forming Machine
1. The warranty of Shutter Door Guide Machine
is 18months after the client receives the machine.
Within the 1.5 years, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 30 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
