YX10-900 Roof Panel Roll Forming Machine
1.Main features of YX10-900 roof panel machine
The advantages of roof panel machine are as follows:

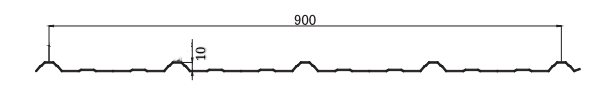

1.Two ribs on the profile
2.Save space，more convenient.
3.Easy operation, low maintenance cost
4.Stable and durable
2.Detailed Images of YX10-900 roof panel forming machine
Machine Parts

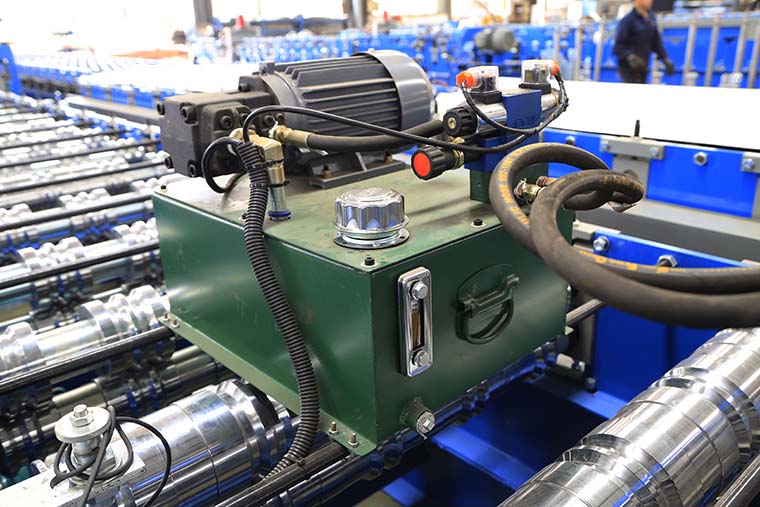

1) YX10-900 roof panel machine hydraulic system
Brand: BMS Original: China

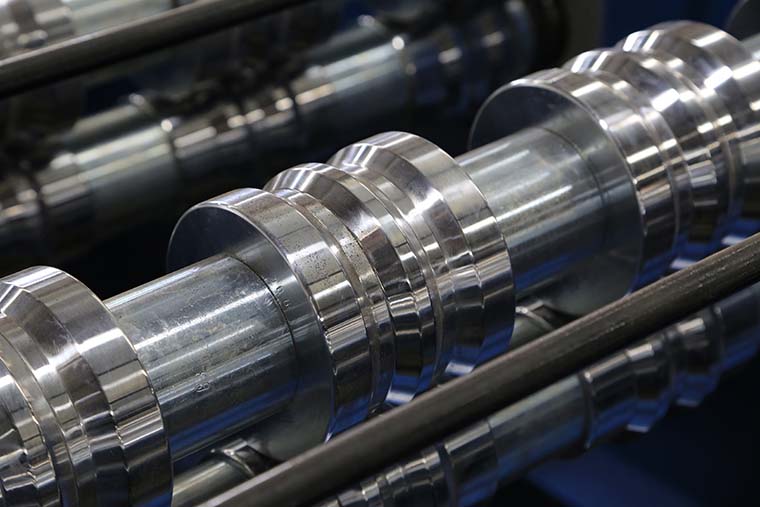

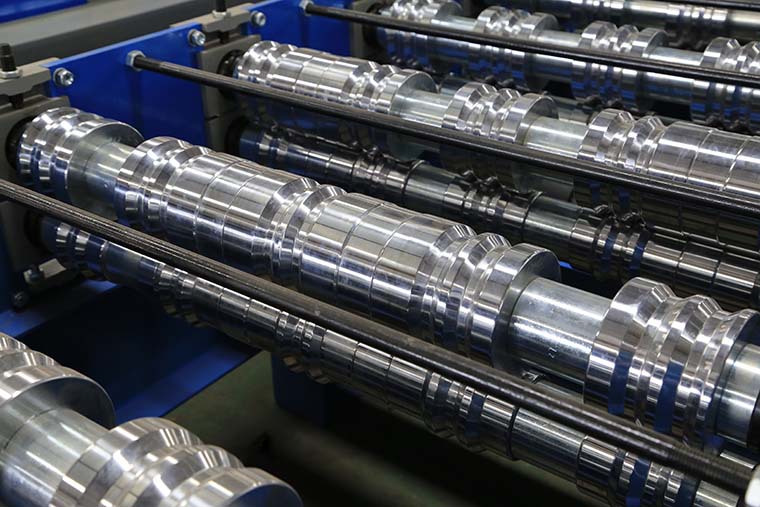

2) YX10-900 roof panel machine rollers
Rollers manufactured from high quality 45# steel , CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel by welding

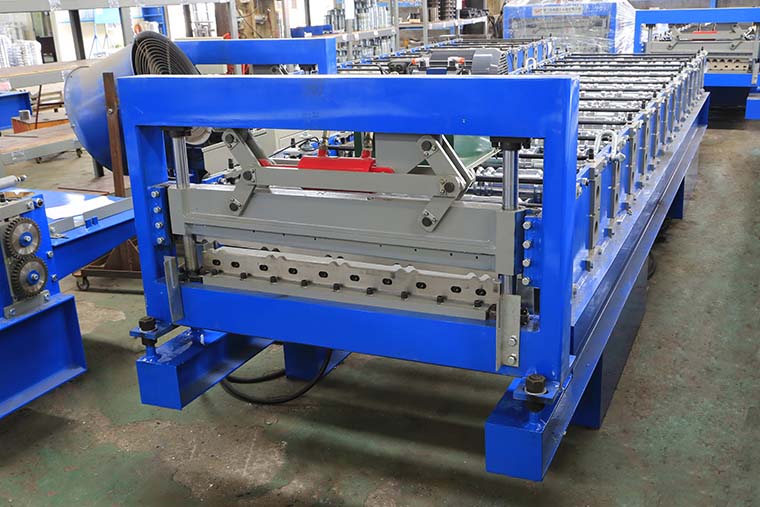

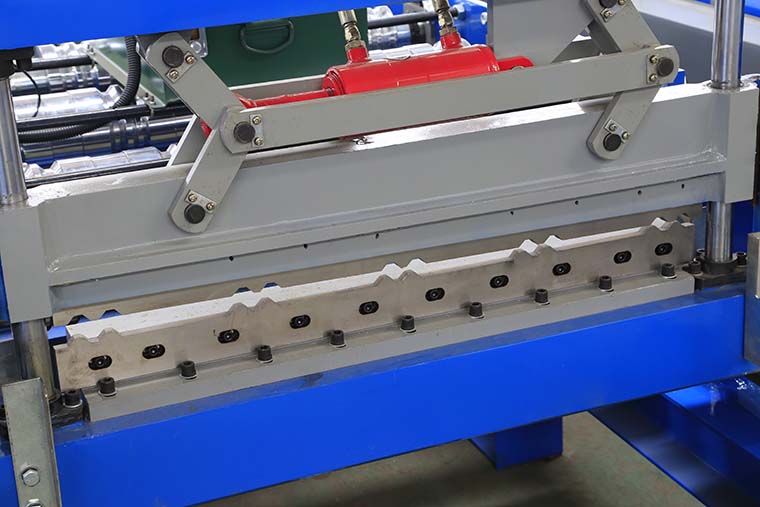

3) YX10-900 roof panel machine post cutter
Made by high quality mold steel Cr12 with heat treatment
Cutter
frame made from high quality 20mm steel plate by welding
Hydraulic motor:2.2KW,
Hydraulic pressure range: 0-16Mpa

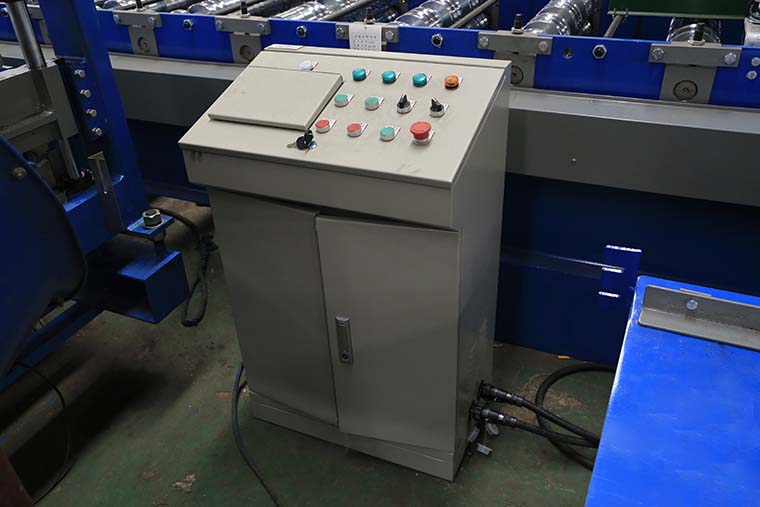

4) YX10-900 roof panel machine control cabinet
Easy to operate

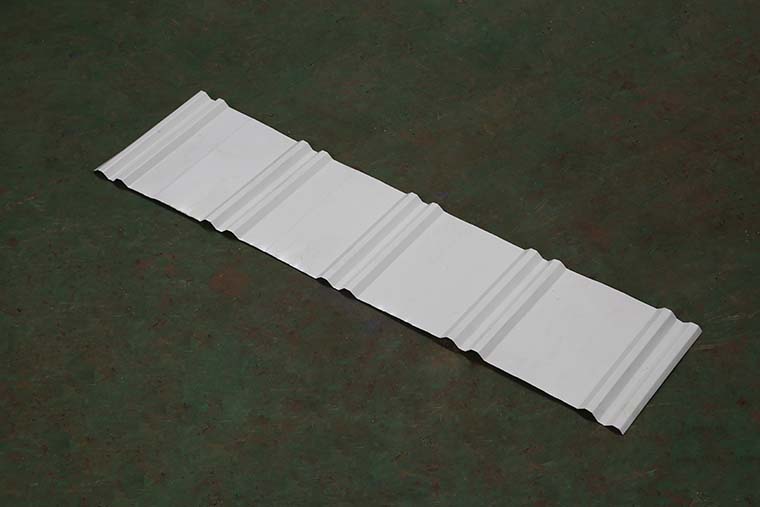

5) YX10-900 roof panel machine product show

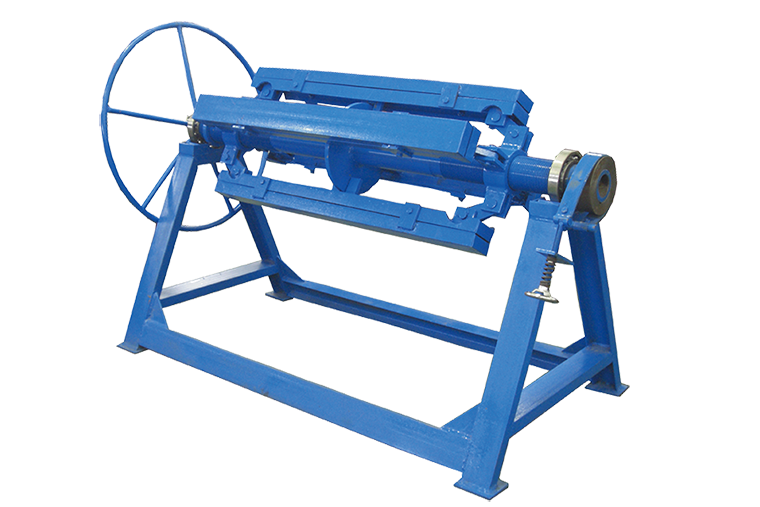

6) YX10-900 roof panel machine decoiler
Manual Decoiler: one set
Un-powered,manually
control steel coil inner bore shrinkage and stop
Max. feeding width: 1250mm, coil ID range 470mm±30mm
Capacity: Max. 8 Ton
With 6 tons hydraulic decoiler for option

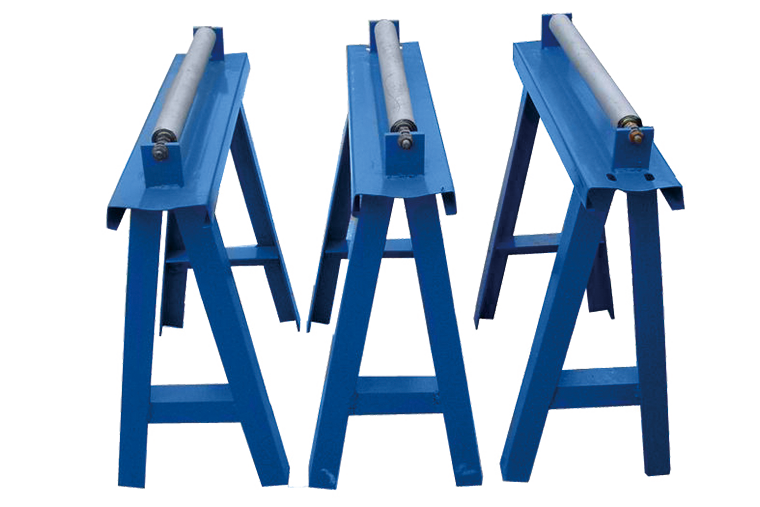

7) YX10-900 roof panel machine exit rack
Un-powered,one
unit
Other detailes of YX10-900 roof panel machine
Suitable for material with thickness 0.3-0.8mm
Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined
Motor driving,Gear chain transmission,20 steps to form

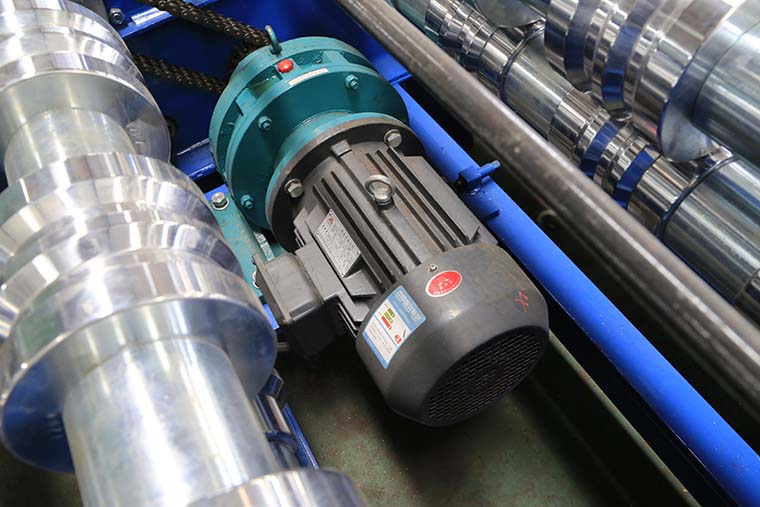

Main motor=7.5KW , Frequency speed control. Forming speed approx.12-15m/min
PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English
After-sale service of YX10-900 roof panel machine
1. The warranty of YX10-900 roof panel machine
is one year after the client receives the machine.
Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 30 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
