AUTO Cut To Length Line Machine For 0.5-3.0mm*1600mm
The Feature Of The Machine
1.Automatically forming and cutting at any length with pre-set quantity
2.Signal feedback from encoder showing length of product
3.The control panel enables to count a total length of finished coil
4.Rollers are alloy steel fabricated by CNC precision machine and hard chromium plated
5.Cutting die is SKD11 steel fabricated by CNC machine, thermal treatment get 55-60HRC
Work Follow
Decoiler→Feeding Guide Device→Leveling Device→Slitting Device→Hydraulic Post Cutting →Run Out Table
Machine Components
1) Hydraulic Decoiler: one set
Hydraulic control steel coil inner bore shrinkage and stopMax Feeding width: 1600mm,coil ID range 508mm±30mm
Capacity: Max. 7 Ton

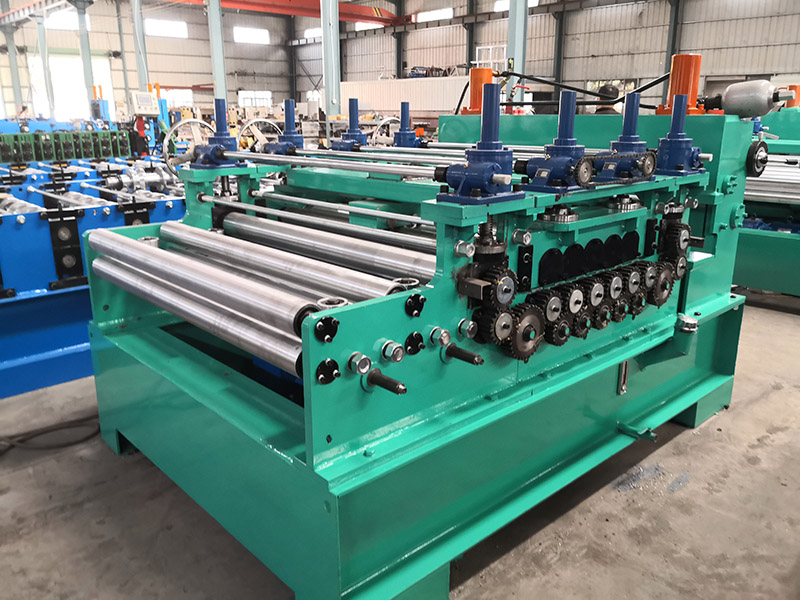

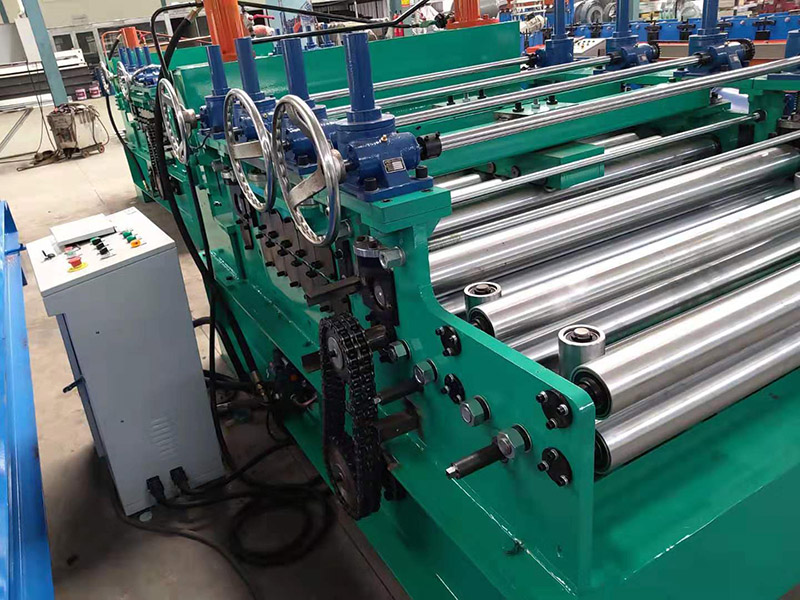

2) Main Machine
Up Five down Six totally Eleven shafts for leveling function
Body frame made from H450 type steel by welding
Side wall thickness: Q235 t30mm
Shafts manufactured from GCr15 Steel,Diameter=φ105mm,High Frequency Heat Treatment
Gear Drive
With Leveling Function
With Shearing Ffunction
Line Speed:25m/minute
Main Mmachine Motor:11KW+3.7KW
With PLC Control System
3) Post Hydraulic Cutting Device
Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor:3.7KW ;Cutting pressure: 0-16Mpa
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine hydraulic station
4)Exit Rack
Un-powered, One unit
Packing Style
Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
After-Sale Service
1. The warranty is 24 months after the client receives the machine.
Within the 24 months, we will courier the replacement parts to the client free of charge
2. We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with
extra cost
Terms Of Trade
1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc
