Metal Box Roll Forming Machine

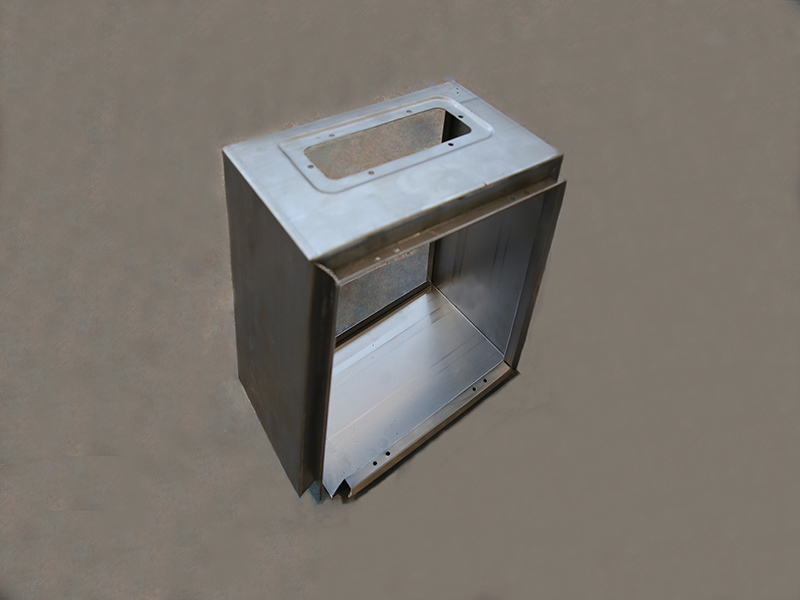

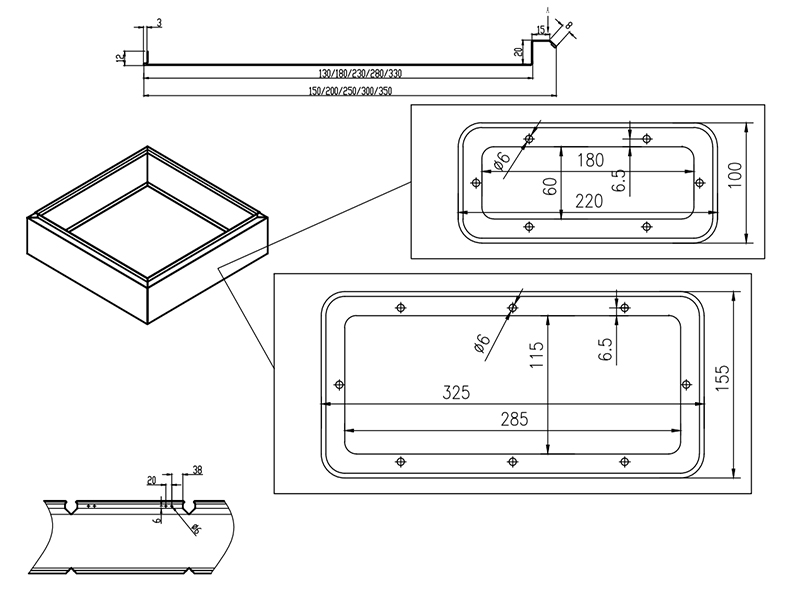

Profile
Change Size By Spacer
Material
Material Thickness: 0.6-1.2mm
Applicable material:Galvanized Steel(GI),Cold Roll Steel(CRC)
With yield strength :245-345Mpa

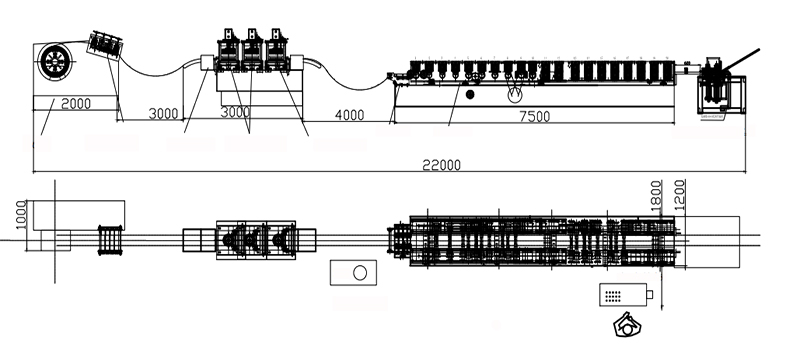

Work Follow
Decoiler & Leveling Device→Servo Motor Feeding & Punching Device→Feed Guide Device→Roll Forming System→Hydraulic Post Punching & Cutting Device→Exit Rack
Machine Components

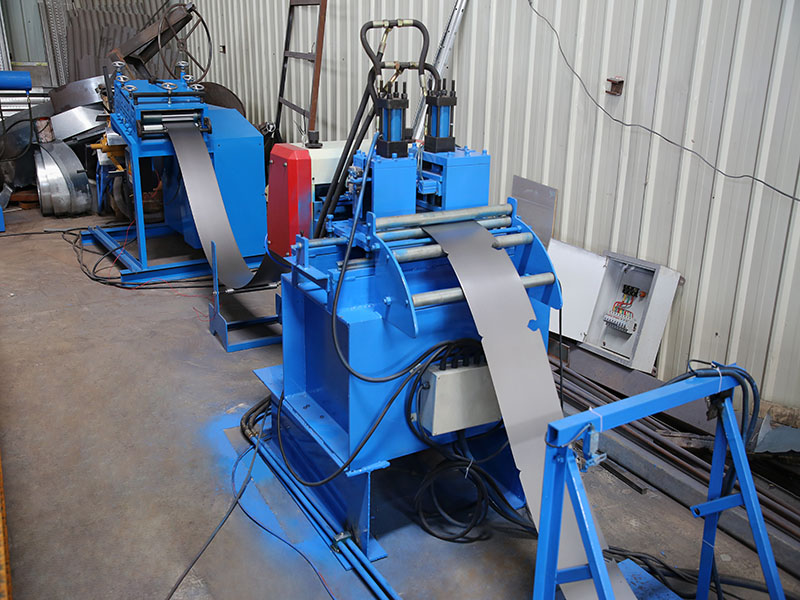

1) Decoiler & Leveling Device: one set
Un-powered, Manually control steel coil inner bore shrinkage and stop Max Feeding width: 600mm,coil ID range 508mm±30mm Capacity: Max. 5 Ton

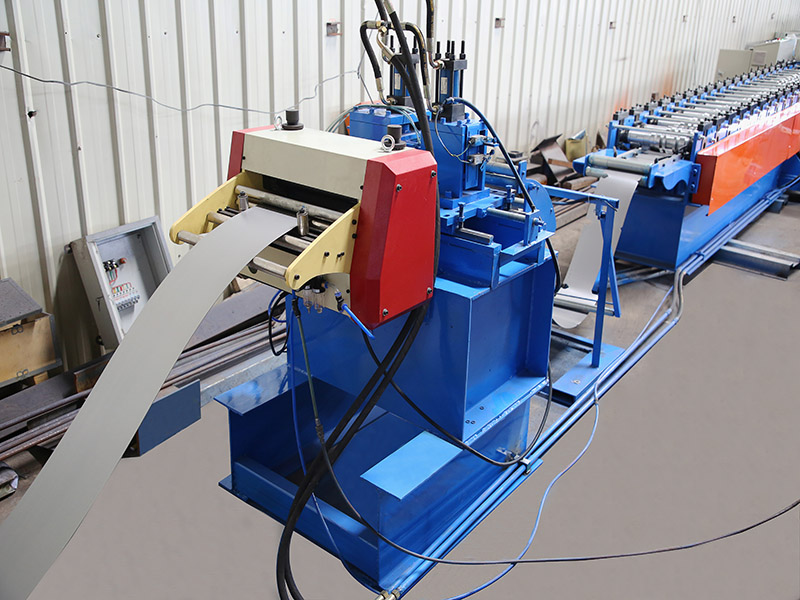

2) Servo Motor Feeding & Punching Device
3) Feed Guide Device
The guiding position can be adjusted for suitable material feeding

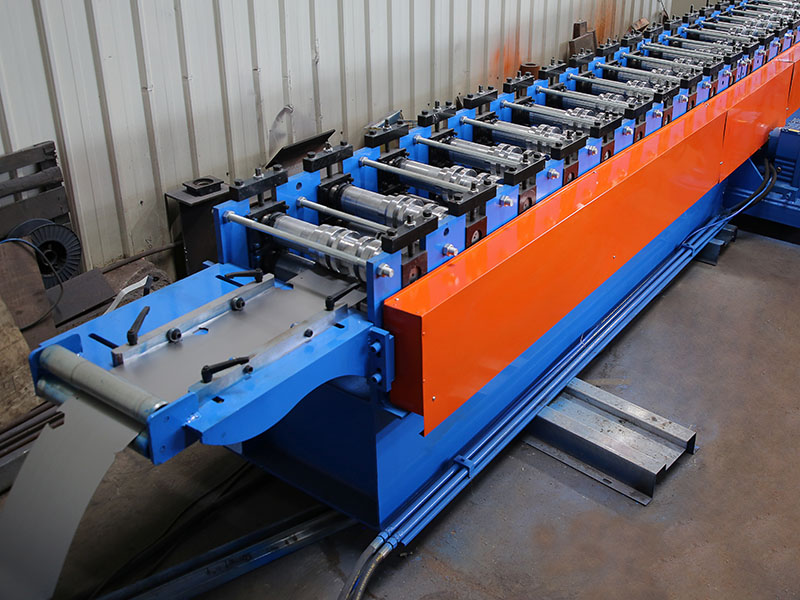

4) Main Machine
Body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm

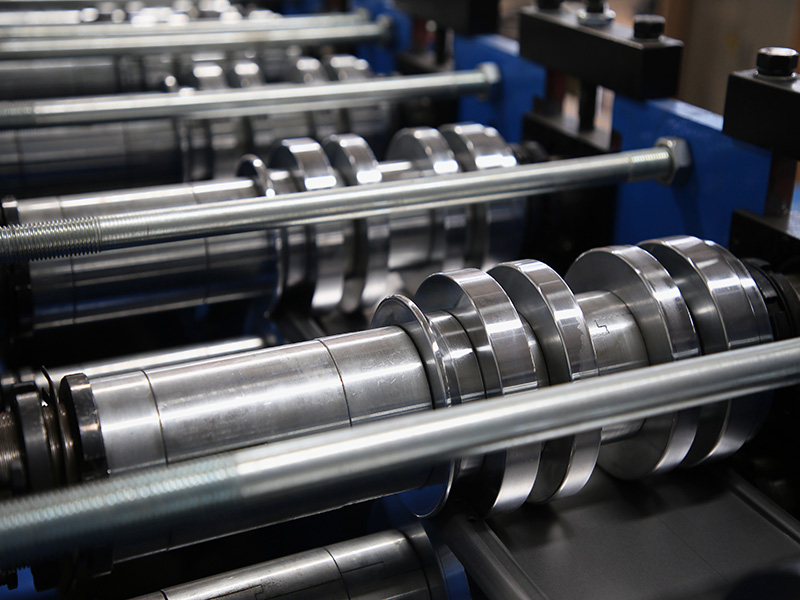

Rollers manufactured from GCr15 Steel,CNC lathes,Heat Treatment
Shafts Diameter=ф75mm,precision machined
Gear/Sprocket driving,about 20-step to form
Main Motor(Polaroid brand)=7.5KW,Frequency speed control
Real forming speed 15-18m/min(Not include cutting time)

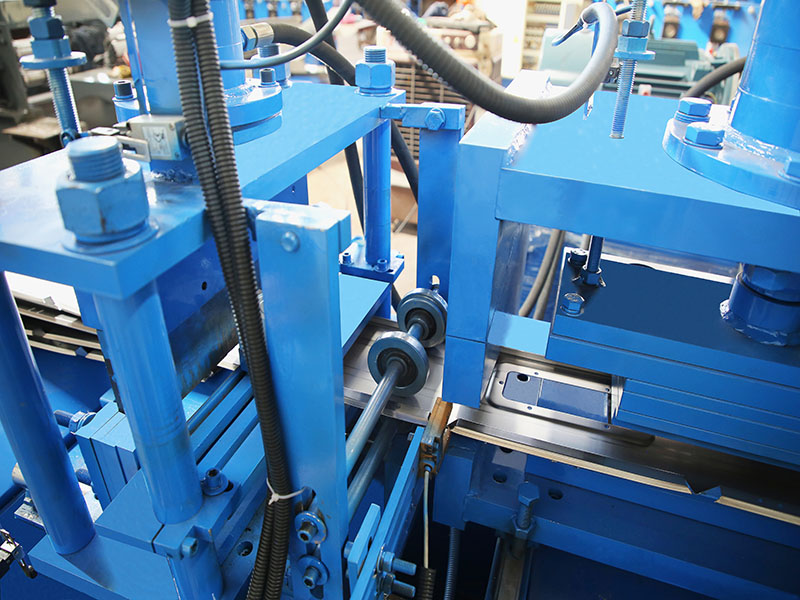

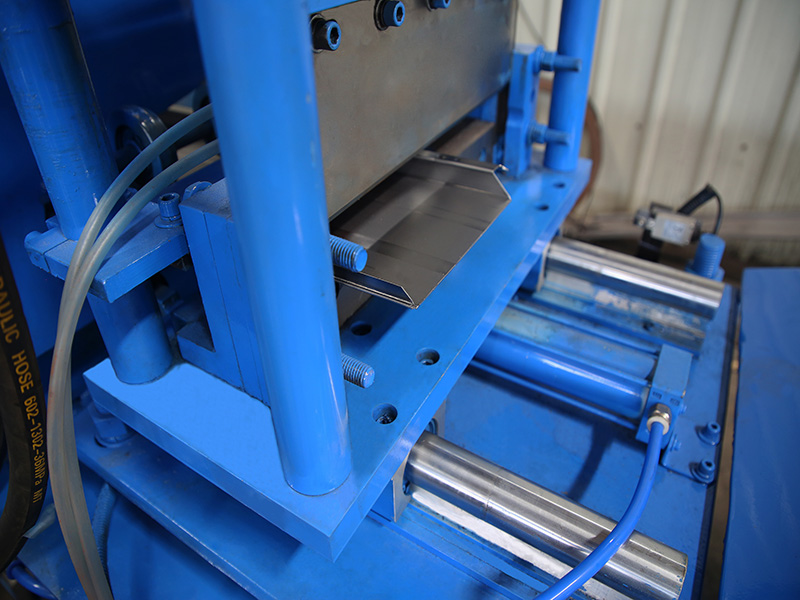

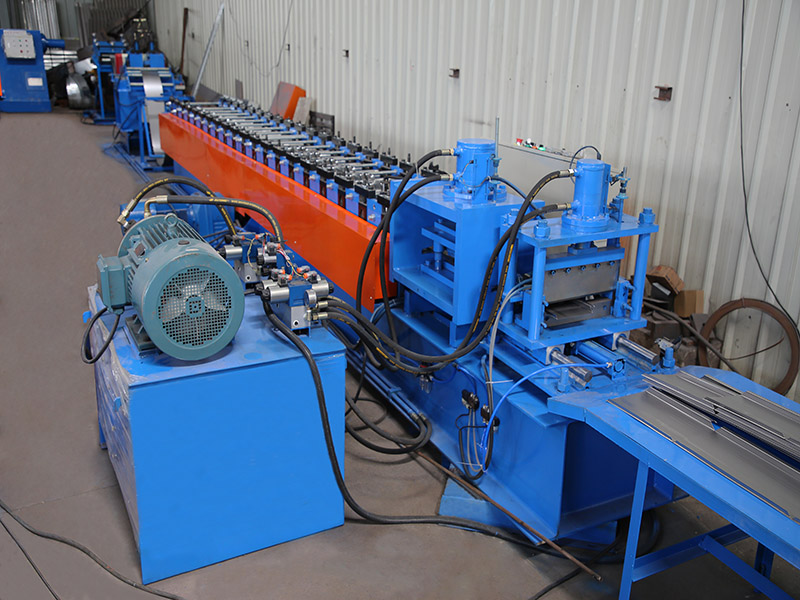

5)Post Hydraulic Punching & Cutting Device
Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor: 5.5KW
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine Independent hydraulic station
6) PLC Control System
Control The Quantity And Cutting Length Automatically.Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.
7)Exit Rack
Un-powered, Two units,with rollers on it for easy movement.

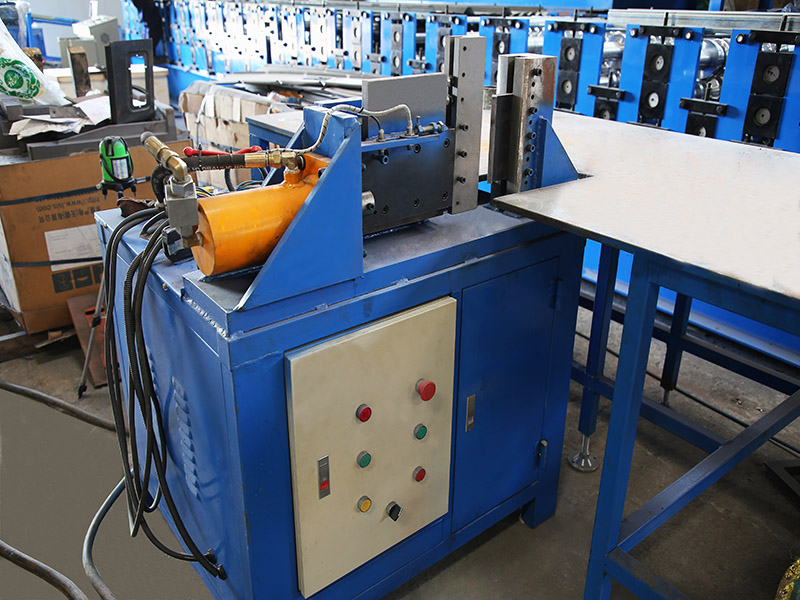

8)Bending Machine
9)Product Show
