Highway Rack Post Roll Forming Machine

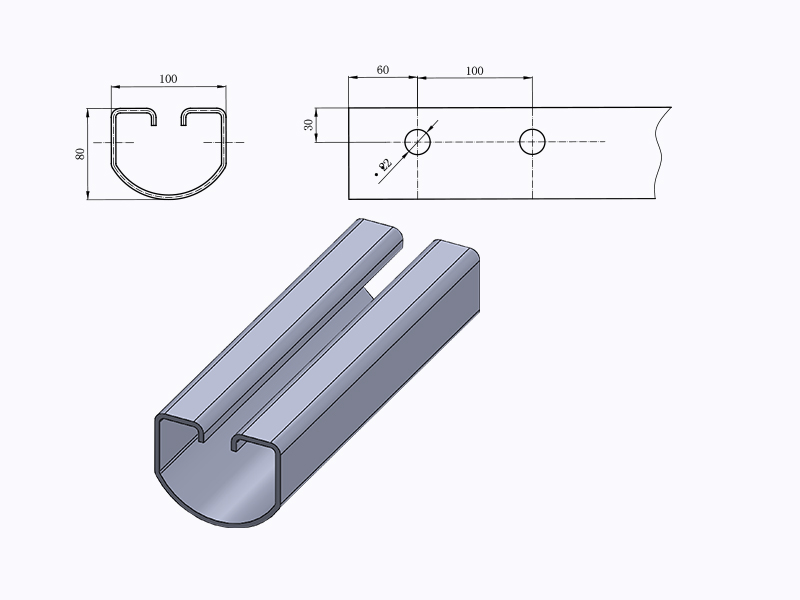

Profile
Material
Material Thickness: 2.0-4.0mm
Applicable Material:Cold Roll Steel(CRC),Hot Rolled Steel(HRC)
With Yield Strength:G340-550Mpa
Work Flow

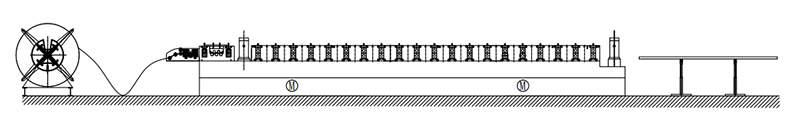

Decoiler→Guide Feeding & Leveling Device→Punching Device→Roll Forming System→Hydraulic Post Cutter →Exit Rack
Machine Components

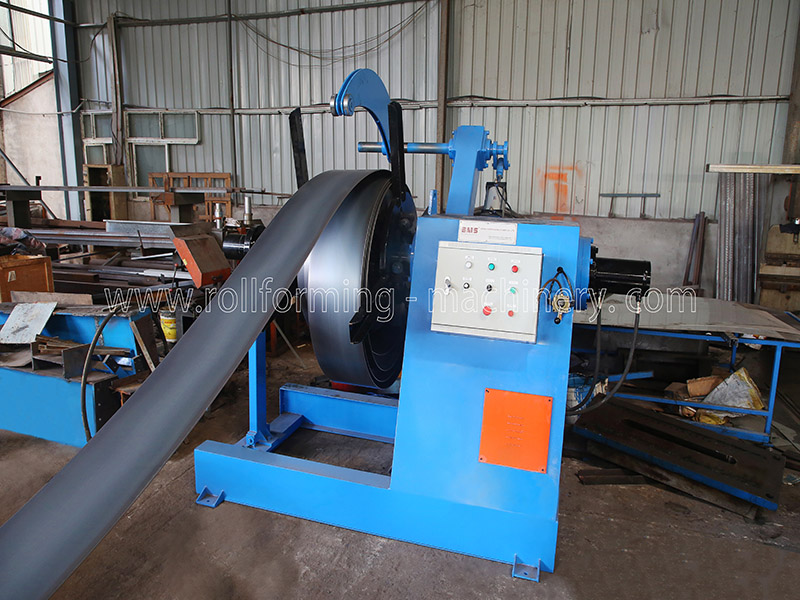

1) Hydraulic Decoiler: one set
Hydraulic Control Steel Coil Inner Bore Shrinkage And Stop
Max. Feeding Width:500mm
Coil ID Range:508±30mm
Max Capacity:5 ton
With Press Arm

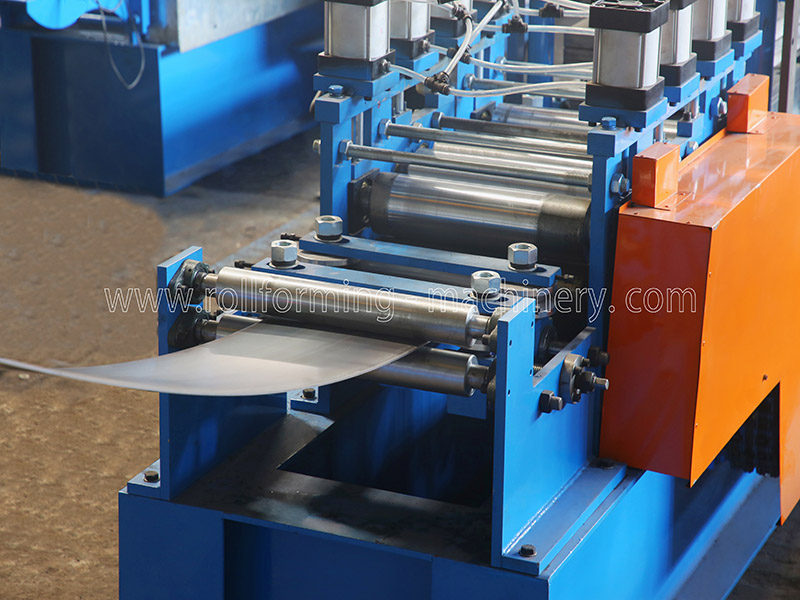

2) Feeding Guide & Leveling Device
Up Three Down Four Totally Seven Leveling Shafts
With Feeding Material Guide,Body Frame Made From H450 Type Steel
Side Wall Thickness:Q235 t20mm
Shafts Manufactured From GCr15 Steel(=EN31 Steel),Diameter=φ105mm

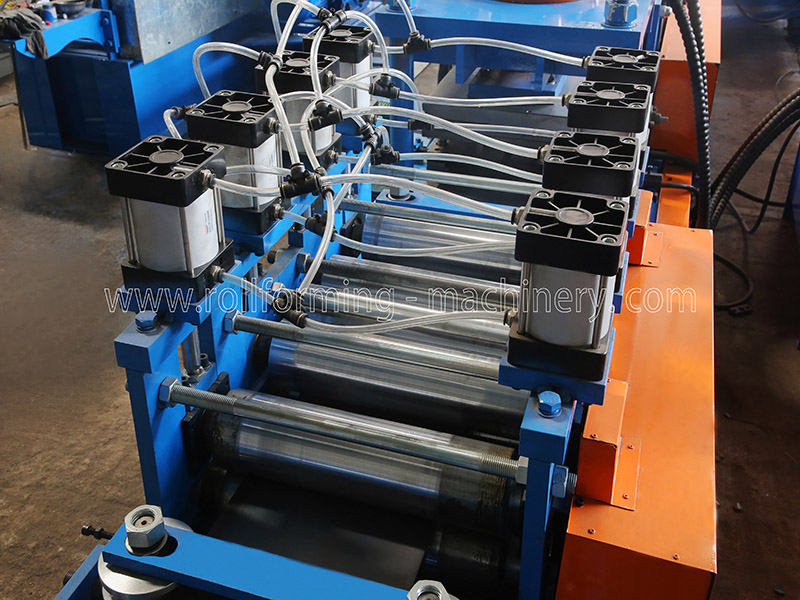

Eight Air Cylinders To AUTO Chamge Up & Down Shafts Distance

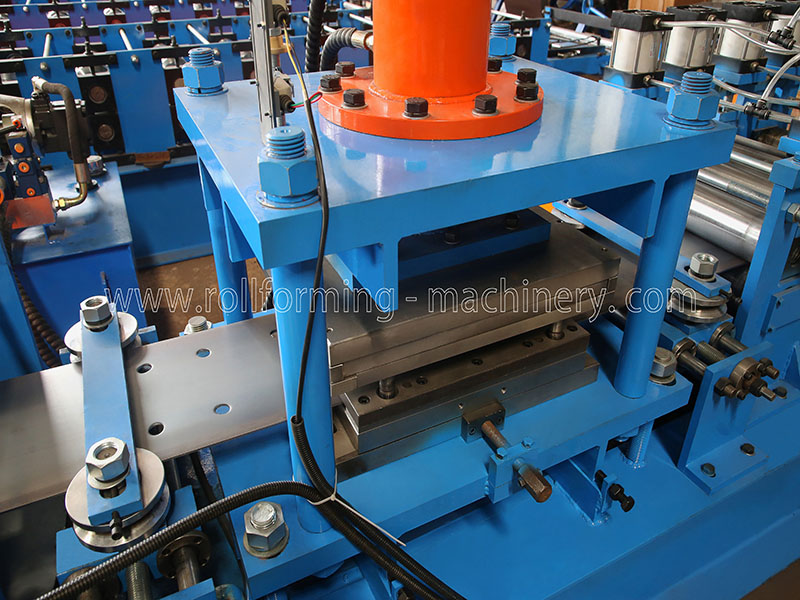

3) Punching Device

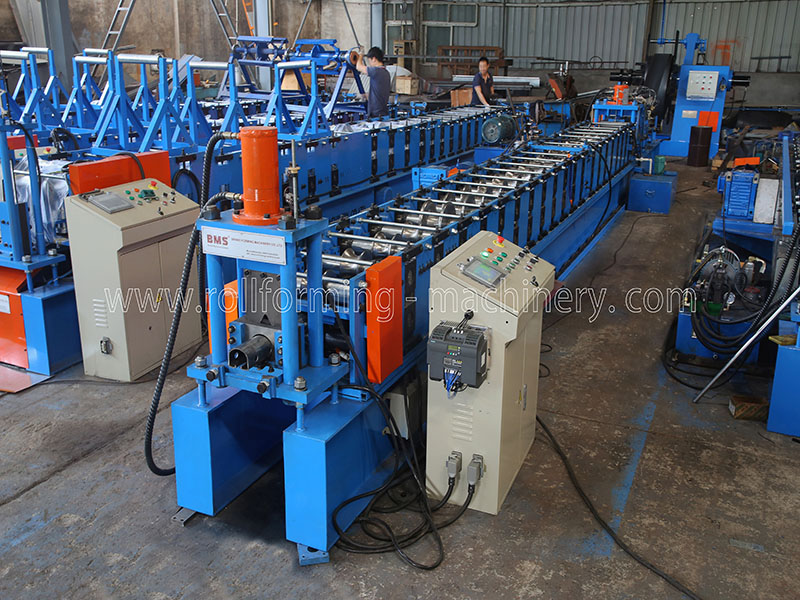

4) Main Machine
Body Frame Made From H450 Type Steel By Welding.

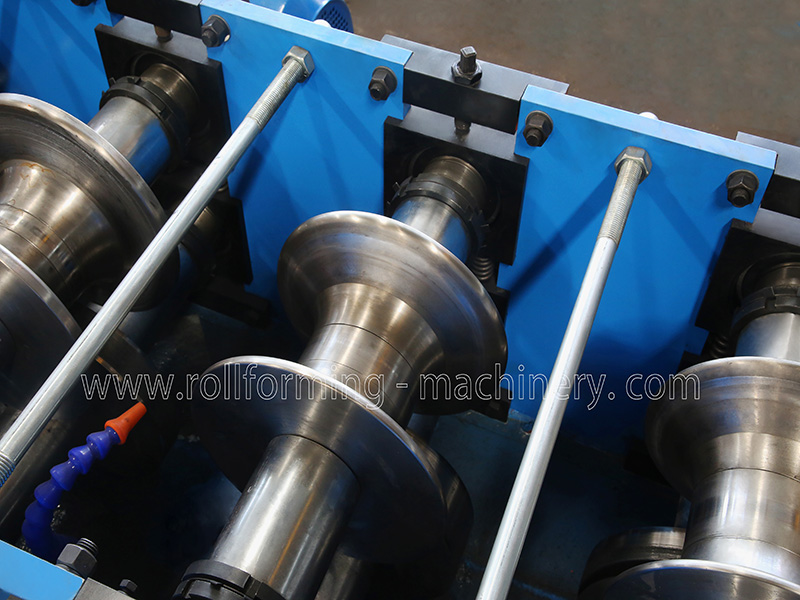

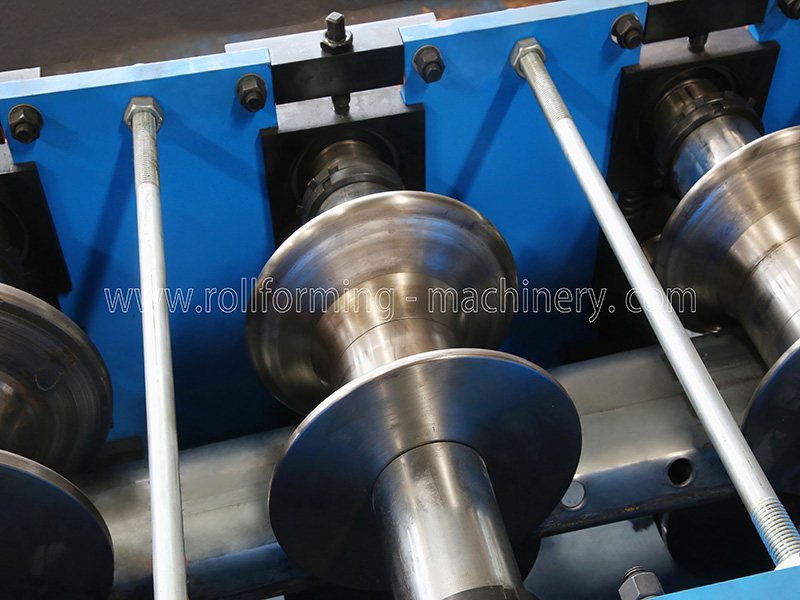

Rollers Make From Cr12 Steel(=D3),Heat Treatment HRC58-62
Shafts Diameter=ф85,Precision Machined.
Gear/Sprocket Driving,About 20-Step To Form.

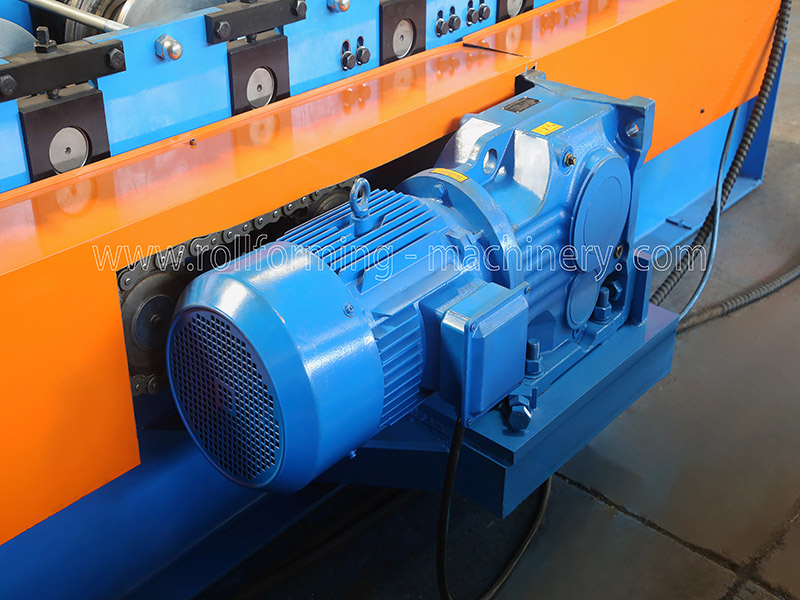

Main Motor=15KW*2, Frequency Speed Control.

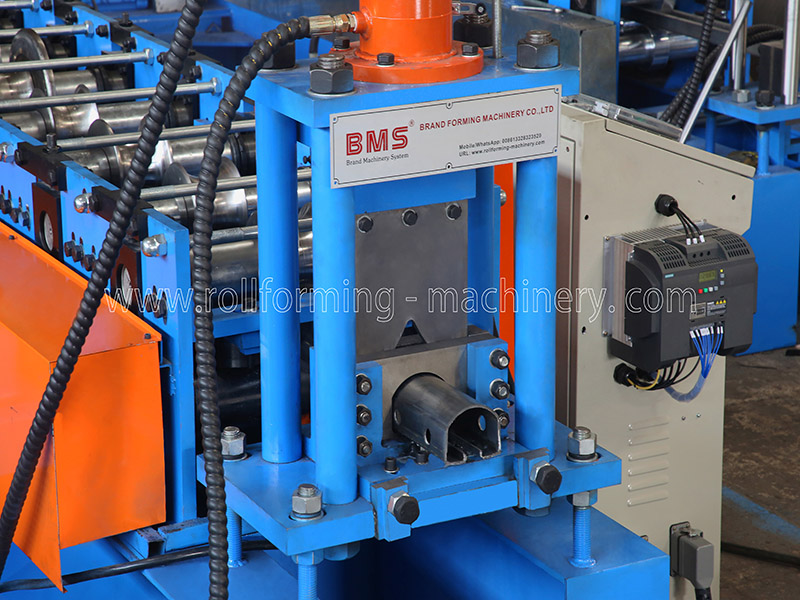

5) Post Hydraulic Cutting Device
Post To Cut,Stop To Cutting,Two Pieces Type Of Cutting Blade Design
Hydraulic Motor:11KW;Cutting Pressure:0-16Mpa
Cutting Tool Material:Cr12MoV(=SKD11 Steel),Heat treatment to HRC58-62,With At Least One Million Times Of Cutting Life

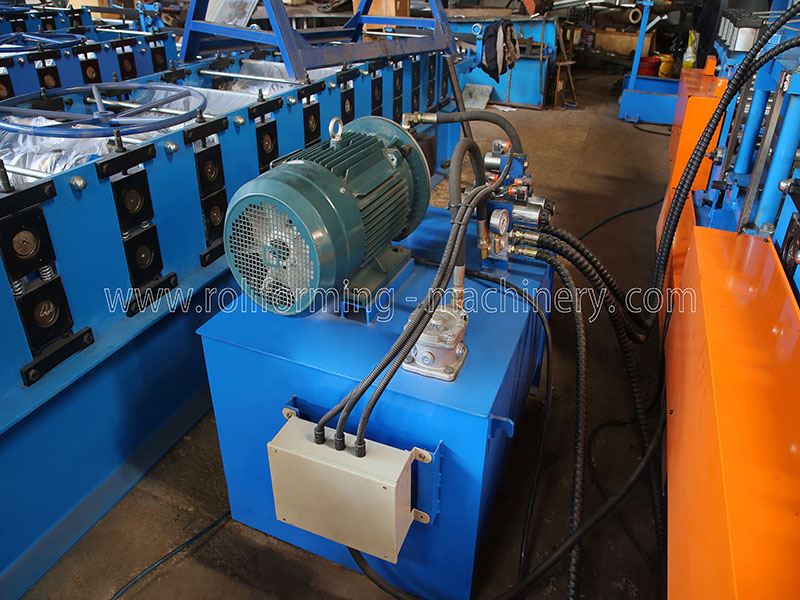

The Cutting Power Is Provided By The Independent Engine Hydraulic Station

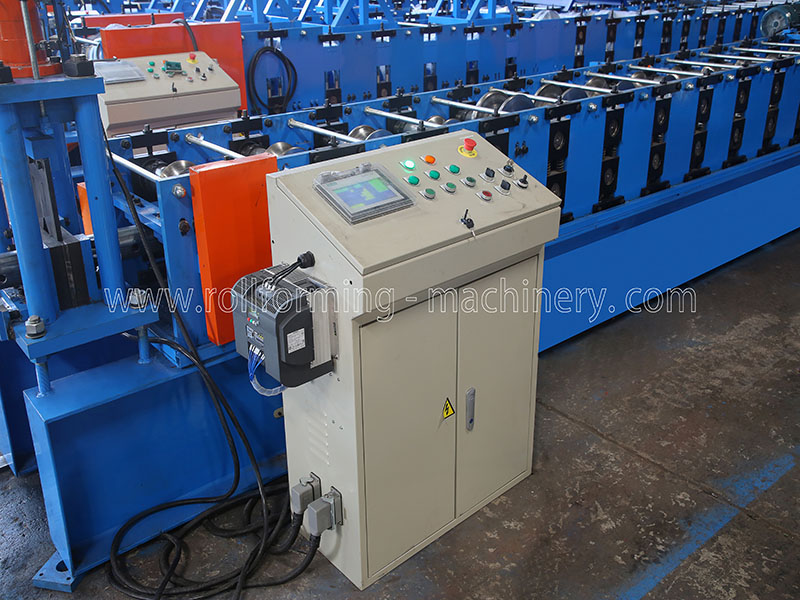

6) PLC Control System
Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)
On The Touch Screen.It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.
7)Exit Rack:Two units
Un-Powered,With Rollers On It For Easy Movement.

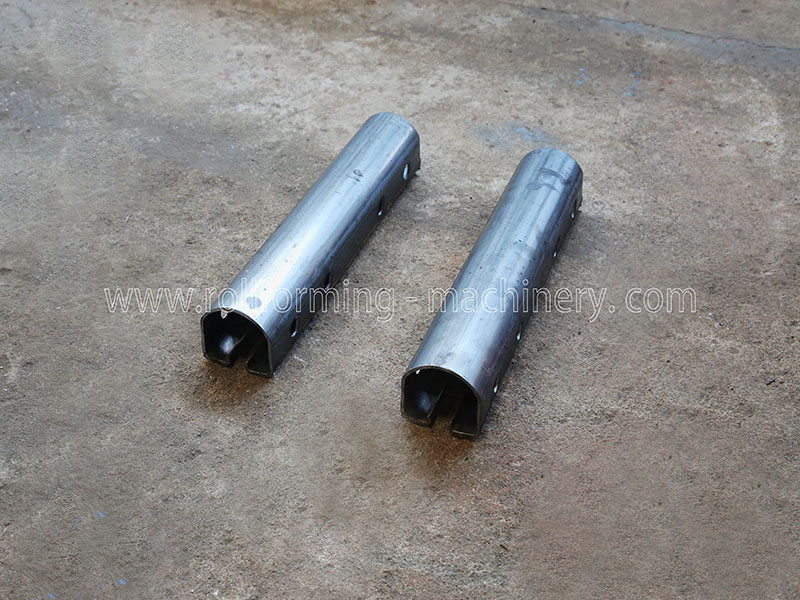

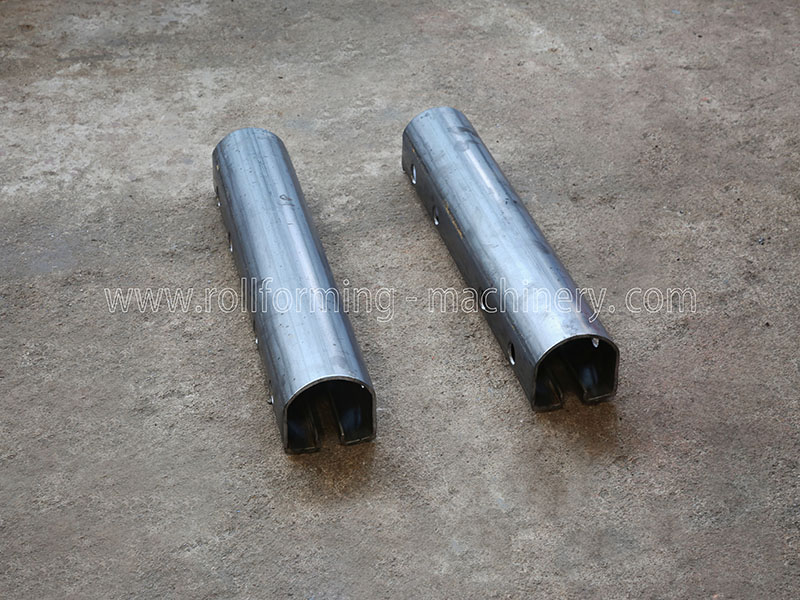

8)Product Show
