Highway W Beam Roll Forming Machine
Profile
Material
Material Thickness(t):3.0-4.5mm
Applicable material:Galvanized Steel(GI),Cold roll steel(CRC)
With yield strength Q235-550Mpa
Work Follow
Decoiler→Feeding and Leveling Device→Rolling Forming System→Hydraulic Post Punching & Cutting→Exit Rack
Machine Components
1) 5 Ton Hydraulic Decoiler: one set
Hydraulic control steel coil inner bore shrinkage and stop
Max. feeding width:600mm
Coil ID Range:508±30mm,Outside Diameter:1500mm
Max capacity:5 ton, motor:3KW, frequency speed control
Oil pump motor:3KW,With Press Arm
Add automatic feeding power and self-stop device
2) Feeding And Leveling Device
Up Three down Four totally seven shafts leveling device
With feeding material guide, body frame made from H450 type steel by welding
Side wall thickness: Q235 t30mm
Shafts manufactured from GCr15 Steel,Diameter=φ120mm,Tone plated with hard chrome Coated,precision machined
Use Eight Air Devices to AUTO change the distance of up and down shafts
5) Main Machine
Body frame made from H450 type steel by welding
Side wall thickness: Q235 t30mm
Rollers manufactured from Cr12 Steel,CNC lathes,Heat Treatment,HRC58-62
Shafts Diameter=ф85,precision machined
Gear/Sprocket driving,about 18-step to form
Main Motor=18.5KW, Frequency speed control
With Water Cold Device For Good Product
5) Post Hydraulic Punching & Cutting Device
Post to cut, stop to cutting,Three pieces type of cutting blade design, no blanking
Hydraulic motor:22KW,Cutting pressure: 0-16Mpa
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
2-cylinders hole punching system for punching
1-cylinders system for Cutting

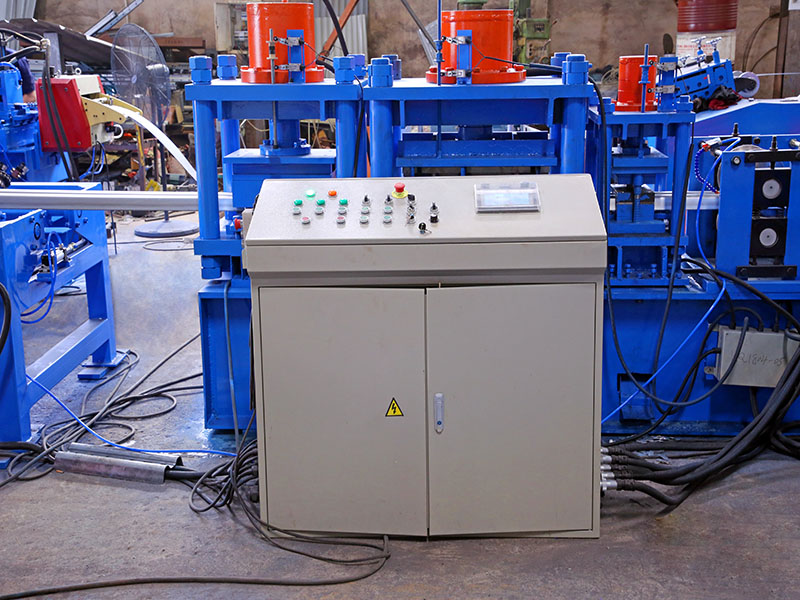

6)PLC Control System
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc
7)Exit Rack
With-powered, One unit,with rollers on it for easy movement.
