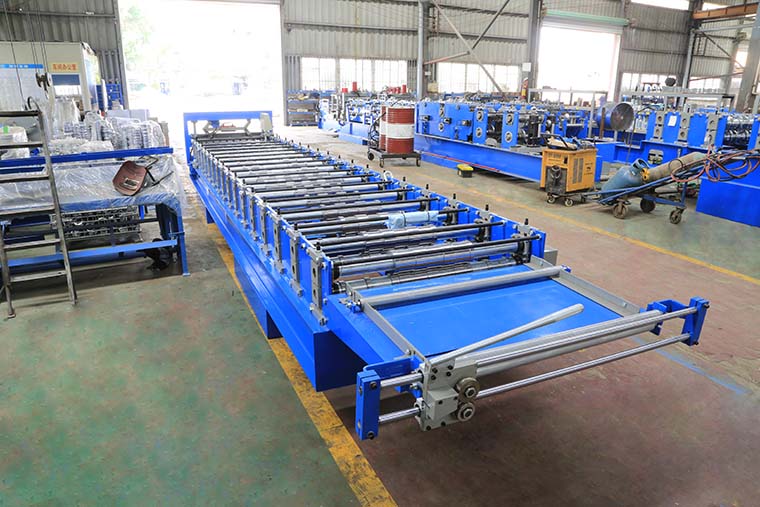

Wall Decorative Panel(Advertising Panel) Roll Forming Machine
1.Main features of wall decorative panel(advertising panel) machine roll forming machine
The advantages of roof panel machine are as follows:
1.Low cost, light weight but high strength, short building period, and re-cycle use
2.Save material ,no waste.
3.Easy operation, low maintenance cost
4.Beautiful appearance
5.Accuracy profile
2.Detailed Images of Wall decorative panel(advertising panel) forming machine
Machine Parts
1) Wall decorative panel(advertising panel) machine pre-cutter
Brand: BMS Original: China
With feeding material guide.

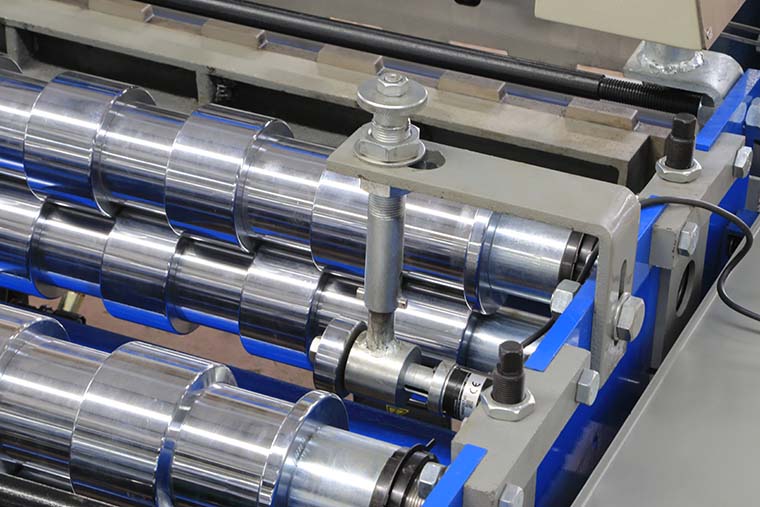

2) Wall decorative panel(advertising panel) machine rollers
Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
Body frame made from 350# H type steel by welding
3) Wall decorative panel(advertising panel) machine post cutter
Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
hydraulic motor:3.7KW, Hydraulic pressure range: 0-16Mpa
4) Wall decorative panel(advertising panel) machine product show
Overlap Effect
5) Wall decorative panel(advertising panel) machine PLC control system
PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
\
6) Wall decorative panel(advertising panel) machine decoiler
ManualDecoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1200mm, coil ID range 508mm±30mm
Capacity: 5-9 Ton
With 6 tons hydraulic decoiler for option
7) Wall decorative panel(advertising panel) machine exit rack
Un-powered,one unit
Other detailes of wall decorative panel(advertising panel) roll forming machine
Suitable for material with thickness 0.3-0.8mm
Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined
Motor driving,Gear chain transmission, 16 steps to form.
Main motor=5.5KW , Frequency speed control. Forming speed approx.12-15m/min
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English
After-sale service of wall decorative panel(advertising panel) roll forming machine
1. The warranty of purlin wall decorative panel(advertising panel) roll forming machine is one year after the client receives the machine.
Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
